| 9305K、9309K、9312K |
|
上海川代轴承机械有限公司 新闻动态 2025-6-8
|
|
|
|

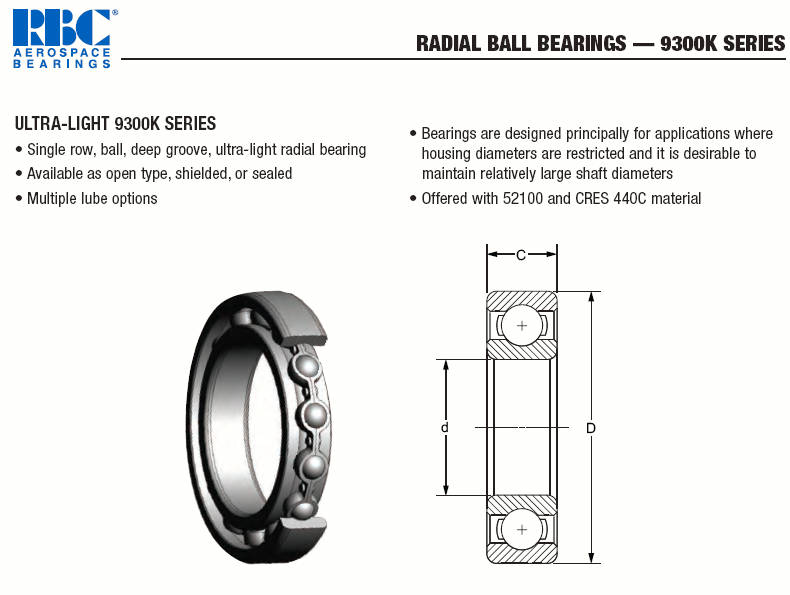

Bearing Number |
Bore d
in. mm |
tolerance
+0.000 +0.000
to minus
in. mm |
Outside Diameter D
in. mm |
tolerance
+0.000 +0.000
to minus
in. mm |
Width C
in. mm |
tolerance
+0.000 +0.000
to minus
in. mm |
Fillet Radius (1)
in. mm |
Wt
lbs. |
.
kg |
Static Load Rating
CO
lbs. N |
Dynamic Load Rating
CR
lbs. N |
|
9300K |
0.3937 |
10 |
0.0003 |
0.008 |
0.8661 |
22 |
0.00035 |
0.009 |
0.236 6 |
0.005 |
0.12 |
0.012 0.3 |
0.02 |
0.009 |
290 |
1270 |
610 |
2700 |
|
9301K |
0.4724 |
12 |
0.0003 |
0.008 |
0.9449 |
24 |
0.00035 |
0.009 |
0.236 6 |
0.005 |
0.12 |
0.012 0.3 |
0.03 |
0.014 |
360 |
1610 |
750 |
3330 |
|
9302K |
0.5906 |
15 |
0.0003 |
0.008 |
1.1024 |
28 |
0.00035 |
0.009 |
0.276 7 |
0.005 |
0.12 |
0.012 0.3 |
0.04 |
0.018 |
510 |
2250 |
970 |
4320 |
|
9303K |
0.6693 |
17 |
0.0003 |
0.008 |
1.1811 |
30 |
0.00035 |
0.009 |
0.276 7 |
0.005 |
0.12 |
0.012 0.3 |
0.06 |
0.027 |
570 |
2550 |
1030 |
4600 |
|
9304K |
0.7874 |
20 |
0.0004 |
0.010 |
1.4567 |
37 |
0.00035 |
0.009 |
0.354 9 |
0.005 |
0.12 |
0.012 0.3 |
0.08 |
0.036 |
830 |
3680 |
1430 |
6380 |
|
9305K |
0.9843 |
25 |
0.0004 |
0.010 |
1.6535 |
42 |
0.00045 |
0.011 |
0.354 9 |
0.005 |
0.12 |
0.012 0.3 |
0.10 |
0.045 |
1020 |
4530 |
1580 |
7030 |
|
9306K |
1.1811 |
30 |
0.0004 |
0.010 |
1.8504 |
47 |
0.00045 |
0.011 |
0.354 9 |
0.005 |
0.12 |
0.012 0.3 |
0.16 |
0.075 |
1130 |
5010 |
1630 |
7240 |
|
9307K |
1.3780 |
35 |
0.00045 |
0.012 |
2.1654 |
55 |
0.0005 |
0.013 |
0.394 10 |
0.005 |
0.12 |
0.024 0.6 |
0.21 |
0.095 |
1530 |
6830 |
2150 |
9550 |
|
9308K |
1.5748 |
40 |
0.00045 |
0.012 |
2.4409 |
62 |
0.0005 |
0.013 |
0.472 12 |
0.005 |
0.12 |
0.024 0.6 |
0.31 |
0.141 |
2000 |
8900 |
2730 |
12200 |
|
9309K |
1.7717 |
45 |
0.00045 |
0.012 |
2.6772 |
68 |
0.0005 |
0.013 |
0.472 12 |
0.005 |
0.12 |
0.024 0.6 |
0.35 |
0.159 |
2440 |
10900 |
3170 |
14100 |
|
9310K |
1.9685 |
50 |
0.00045 |
0.012 |
2.8346 |
72 |
0.0005 |
0.013 |
0.472 12 |
0.005 |
0.12 |
0.024 0.6 |
0.37 |
0.168 |
2630 |
11700 |
3270 |
14500 |
|
9311K |
2.1654 |
55 |
0.0006 |
0.015 |
3.1496 |
80 |
0.0005 |
0.013 |
0.512 13 |
0.006 |
0.15 |
0.039 1.0 |
0.46 |
0.209 |
3160 |
14100 |
3740 |
16600 |
|
9312K |
2.3622 |
60 |
0.0006 |
0.015 |
3.3465 |
85 |
0.0006 |
0.015 |
0.512 13 |
0.005 |
0.12 |
0.039 1.0 |
0.51 |
0.231 |
3390 |
15100 |
3820 |
17400 |
|
9313K |
2.5591 |
65 |
0.0006 |
0.015 |
3.5433 |
90 |
0.0006 |
0.015 |
0.512 13 |
0.006 |
0.15 |
0.039 1.0 |
0.55 |
0.250 |
4160 |
18500 |
4660 |
20700 |
|
9314K |
2.7559 |
70 |
0.0006 |
0.015 |
3.9370 |
100 |
0.0006 |
0.015 |
0.630 16 |
0.005 |
0.12 |
0.039 1.0 |
0.64 |
0.290 |
4750 |
21100 |
5330 |
23700 |
|
9315K |
2.9528 |
75 |
0.0006 |
0.015 |
4.1339 |
105 |
0.0006 |
0.015 |
0.630 16 |
0.005 |
0.12 |
0.039 1.0 |
0.72 |
0.327 |
5350 |
23800 |
5670 |
25200 |
|
9316K |
3.1496 |
80 |
0.0006 |
0.015 |
4.3307 |
110 |
0.0006 |
0.015 |
0.630 16 |
0.006 |
0.15 |
0.039 1.0 |
0.80 |
0.363 |
5370 |
23900 |
5610 |
24900 | |
