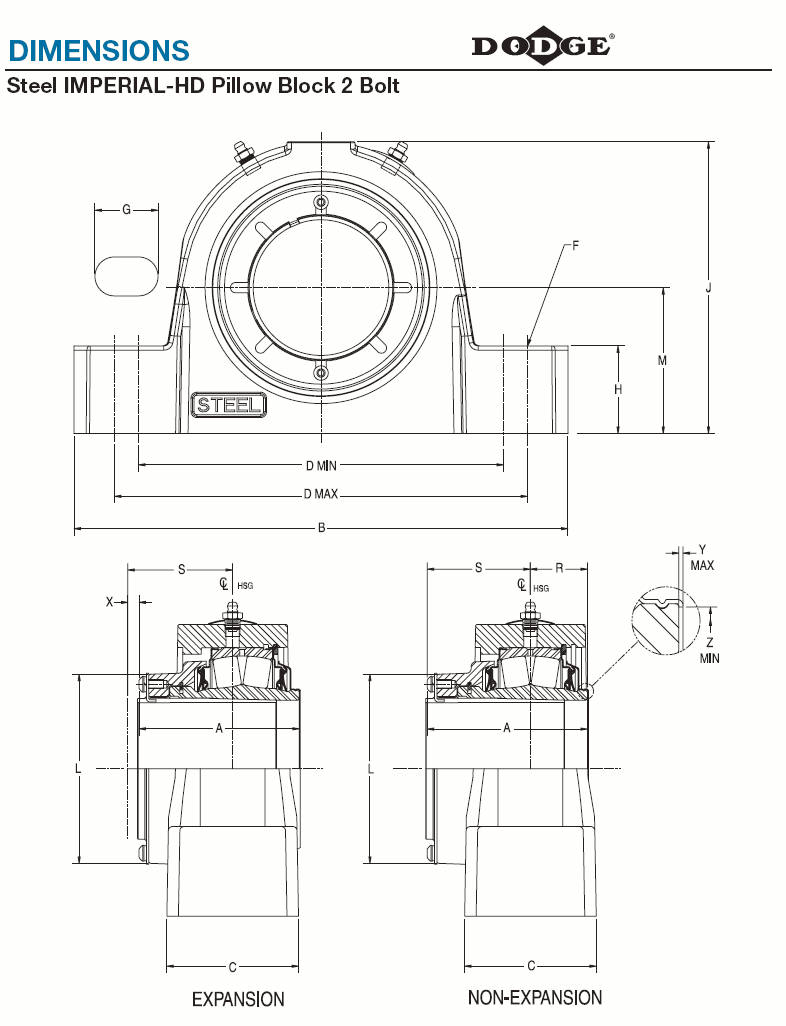

型号

内径

A

B

C

D MIN  D MAX

F BOLT

 DIA.

G

H

J

L

M

R

S

X TOTAL

 EXP

Y

Z

SP2B-IP-102RE

1-1/8

2.63

6.88

2.25

4.69

6.00

1/2

1.28

1.13

3.88

2.72

1.875

0.86

1.77

3/16

0.020

1.80

SP2B-IP-103RE

1-3/16

SP2B-IP-104RE

1-1/4

SP2B-IP-106RE

1-3/8

SP2B-IP-107RE

1-7/16

SP2B-IP-108RE

1-1/2

SP2B-IP-110RE

1-5/8

2.81

7.13

2.37

5.25

5.75

1/2

0.88

1.25

4.27

3.00

2.125

0.92

1.89

1/4

0.020

2.08

SP2B-IP-111RE

1-11/16

SP2B-IP-112RE

1-3/4

SP2B-IP-114RE

1-7/8

2.86

8.38

2.44

5.93

6.36

5/8

0.97

1.31

4.56

3.28

2.25

0.90

1.96

1/4

0.020

2.30

SP2B-IP-115RE

1-15/16

SP2B-IP-200RE

2

SP2B-IP-203RE

2-3/16

3.03

8.88

2.50

6.50

7.06

5/8

1.04

1.50

5.00

3.50

2.50

0.99

2.04

1/4

0.025

2.59

SP2B-IP-204RE

2-1/4

SP2B-IP-206RE

2-3/8

3.42

9.25

2.90

6.81

7.43

5/8

1.07

1.63

5.60

3.88

2.75

1.17

2.25

1/4

0.025

2.94

SP2B-IP-207RE

2-7/16

SP2B-IP-208RE

2-1/2

SP2B-IP-211RE

2-11/16

3.50

10.44

2.91

7.70

8.40

3/4

1.23

1.88

6.38

4.28

3.25

1.12

2.37

1/4

0.025

3.47

SP2B-IP-212RE

2-3/4

SP2B-IP-215RE

2-15/16

SP2B-IP-300RE

3

SP2B-IP-303RE

3-3/16

4.17

13.00

3.41

9.25

10.75

7/8

1.75

2.25

7.50

5.00

3.75

1.53

2.63

1/4

0.025

4.05

SP2B-IP-304RE

3-1/4

SP2B-IP-307RE

3-7/16

SP2B-IP-308RE

3-1/2

SP2B-IP-311RE

3-11/16

4.70

14.25

3.89

10.04

12.60

1

2.40

2.44

8.37

5.56

4.25

1.70

3.00

5/16

0.025

4.50

SP2B-IP-315RE

3-15/16

SP2B-IP-400RE

4
