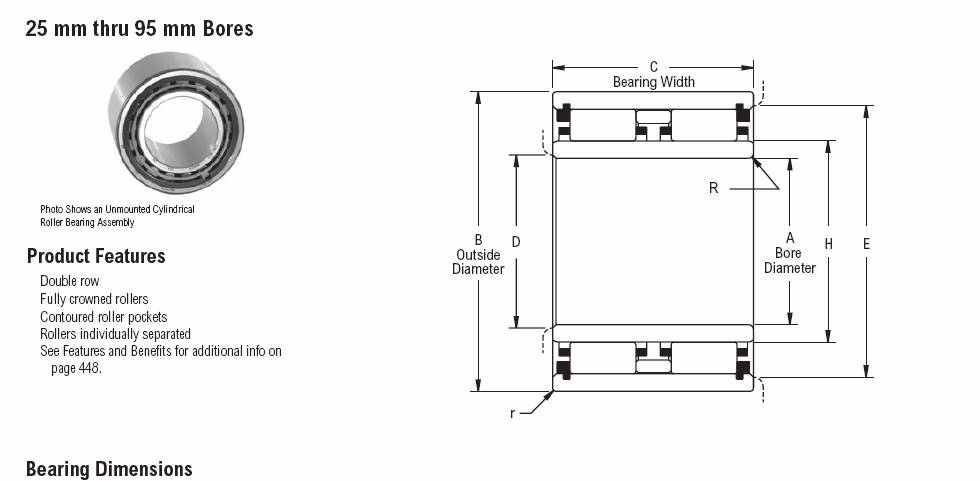

Basic Bearing Number |
A
Bore Diameter |
B
Outside Diameter |
C
Bearing Width |
D |
E |
H |
J
O .R . Raceway I .D . |
R |
r |
C
Basic Load Rating |
Co Basic Static Load Rating |
|
mm |
in |
mm |
in |
mm |
in |
|
MA6205TV |
25.0000 |
0 .9843 |
52.0000 |
2 .0472 |
41.2750 |
1 .6250 |
30.50 |
47.00 |
32.166 |
44.854 |
1.02 |
1.02 |
10,200 |
15,700 |
|
MA6206TV |
30.0000 |
1 .1811 |
62.0000 |
2 .4409 |
476250 |
1 .8750 |
36.10 |
56.40 |
38.062 |
54.074 |
1.02 |
1.02 |
15,500 |
24,300 |
|
MA6207TV |
35.0000 |
1 .3780 |
72.0000 |
2 .8346 |
53.9750 |
2 .1250 |
41.60 |
65.30 |
43.970 |
62.471 |
1.02 |
1.02 |
19,400 |
30,600 |
|
MA6208TV |
40.0000 |
1 .5748 |
80.0000 |
3 .1496 |
60.3250 |
2 .3750 |
47.20 |
72.90 |
49.929 |
69.619 |
1.52 |
1.02 |
24,600 |
41,300 |
|
MA6209TV |
45.0000 |
1 .7717 |
85.0000 |
3 .3465 |
60.3250 |
2 .3750 |
52.80 |
78.20 |
55.519 |
74.988 |
1.52 |
1.02 |
26,700 |
47,500 |
|
MA6210TV |
50.0000 |
1 .9685 |
90.0000 |
3 .5433 |
60.3250 |
2 .3750 |
57.60 |
82.80 |
60.460 |
79.545 |
1.52 |
1.02 |
27,100 |
50,300 |
|
MA6211TV |
55.0000 |
2 .1654 |
100.0000 |
3 .9370 |
6.6750 |
2 .6250 |
64.00 |
87.90 |
66.901 |
88.019 |
2.03 |
1.52 |
32,900 |
61,900 |
|
MA6212TV |
60.0000 |
2 .3622 |
110.0000 |
4 .3307 |
73.0250 |
2 .8750 |
69.30 |
101.30 |
72.380 |
97.762 |
2.03 |
1.52 |
42,300 |
77,700 |
|
MA6213TV |
65.0000 |
2 .5591 |
120.0000 |
4 .7244 |
76.2000 |
3 .0000 |
77.00 |
110.00 |
80.421 |
105.804 |
2.54 |
1.52 |
45,900 |
88,700 |
|
MA6214TV |
70.0000 |
2 .7559 |
125.0000 |
4 .9213 |
79.3750 |
3 .1250 |
81.80 |
115.60 |
84.772 |
111.536 |
2.54 |
1.52 |
51,300 |
100,000 |
|
MA6215TV |
75.0000 |
2 .9528 |
130.0000 |
5 .1181 |
82.5500 |
3 .2500 |
85.60 |
120.10 |
89.014 |
115.781 |
2.54 |
1.52 |
55,800 |
113,000 |
|
MA6216TV |
80.0000 |
3 .149 6 |
140.0000 |
5 .5118 |
88.9000 |
3 .5000 |
91.20 |
129.30 |
95.286 |
124.658 |
2.54 |
2.03 |
63,100 |
127,000 |
|
MA6217TV |
85.0000 |
3 .346 |
150.0000 |
5 .9055 |
98.4250 |
3 .8750 |
98.00 |
101.80 |
102.006 |
134.216 |
3.18 |
2.03 |
77,600 |
159,000 |
|
MA6218TV |
90.0000 |
3 .5433 |
160.0000 |
6 .2992 |
104.7750 |
4 .1250 |
103.10 |
147.60 |
107.218 |
142.189 |
3.18 |
2.03 |
87,400 |
178,000 |
|
MA6219TV |
95.0000 |
3 .7402 |
170.0000 |
6 .6929 |
111.1250 |
4 .3750 |
109.00 |
157.00 |
113.518 |
151.242 |
3.18 |
2.03 |
100,000 |
206,000 | |
