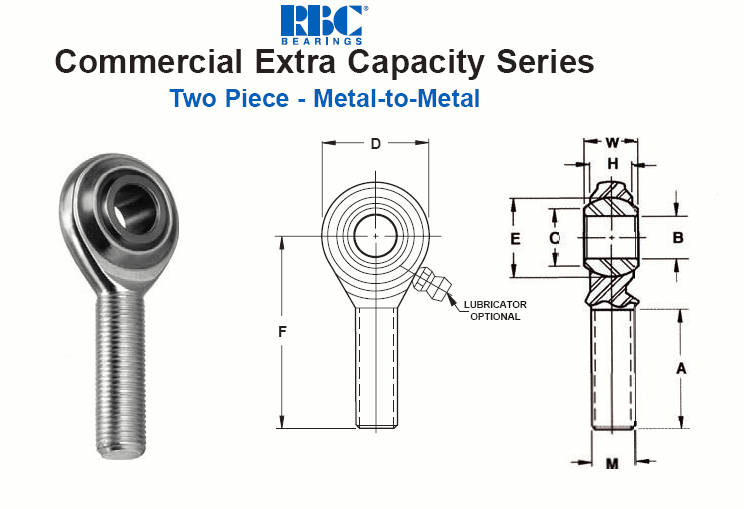

ROD END NUMBER

DIMENSIONS IN INCHES

MAXIMUM STATIC RADIAL LOAD

APPROX WEIGHT

BORE

BALL WIDTH

HOUSING WIDTH

HEAD DIAMETER

LENGTH TO

CENTER OF BALL

THREAD LENGTH

THREAD SIZE

BALL DIAMETER

BALL FLAT DIAMETER

B

W

H

D

F

A

M

E

O

LBF

LBS

+.0025

+.005

+.010

+.031

+.031

+.062

UNF -3A

REF

REF

- .0005

- .005

- .010

- .031

- .031

- .062

M3CR

.1900

.312

.250

.625

1.250

.750

.1900 - 32

.437

.306

950

.03

M4CR

.2500

.375

.281

.750

1.562

1.000

.2500 - 28

.515

.353

2,000

.05

M5CR

.3125

.437

.344

.875

1.875

1.250

.3125 - 24

.625

.447

3,000

.08

M6CR

.3750

.500

.406

1.000

1.938

1.250

.3750 - 24

.718

.516

5,000

.11

M7CR

.4375

.562

.437

1.125

2.125

1.375

.4375 - 20

.812

.586

6,500

.16

M8CR

.5000

.625

.500

1.312

2.438

1.500

.5000 - 20

.937

.698

9,500

.24

M10CR

.6250

.750

.562

1.500

2.625

1.625

.6250 - 18

1.125

.839

10,000

.40

M12CR

.7500

.875

.687

1.750

2.875

1.750

.7500 - 16

1.312

.978

14,000

.63
