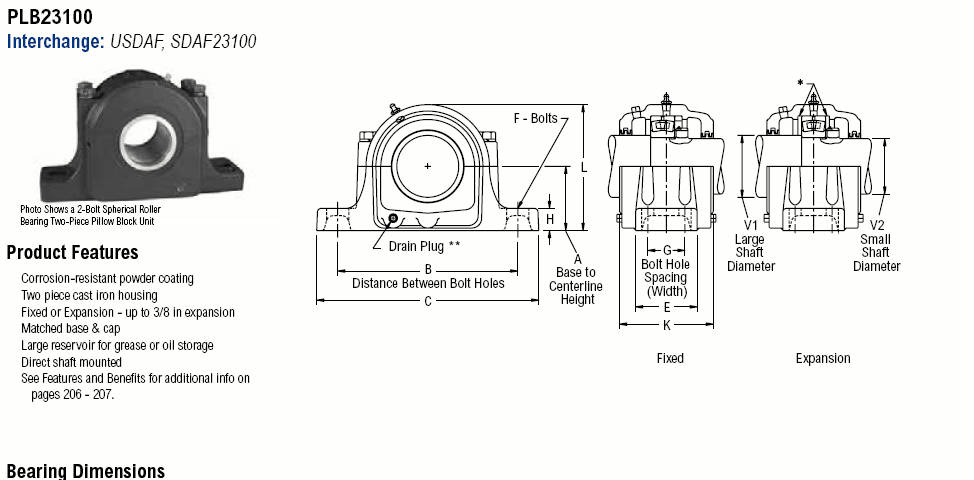

Shaft Diameter

V1

Large Shaft Diameter

V2

Small Shaft Diameter

Part Number

A

Base to Centerline Height

B Min.

Distance Between

Bolt Holes

B Max.

Distance Between

Bolt Holes

G

Bolt Hole Spacing (Width)

C

E

F

Bolts

H

K

L

Approx. Weight

10.24

11 1/2

9 15/16

PLB23152

10 1/4

29

30 1/2

8 3/4

35

14 1/2

1 5/8

3 3/4

14 1/8

20 1/2

985.00

11.02

12 1/2

10 3/4

PLB23156

12

32 3/4

33 1/2

9

38 1/4

14 3/4

1 5/8

3 1/2

15 1/2

24

1,206.00

11.81

13

11 1/2

PLB23160

12

32 3/4

33 1/2

9

38 1/4

15 1/8

1 5/8

3 1/2

16 1/2

24

1,305.00

12.60

14

12 1/4

PLB23164

12 13/16

35

36 1/2

10 1/2

41 3/4

15 3/4

1 7/8

4 1/2

16 1/4

26

1,504.00

13.39

15

13

PLB23168

14

36 3/4

38 1/4

10 3/4

43 3/4

18 1/4

2

5

18

28

2,172.00

14.17

16

13 3/4

PLB23172

14 1/2

39 1/4

40 3/4

11

46

17 1/8

2

5

18

28 3/4

2,322.00

14.96

17

14 1/2

PLB23176

14 1/2

39 1/4

40 3/4

11

46

17 1/8

2

5

18

28 3/4

2,348.00

15.75

17 1/2

15 1/4

PLB23180

15 1/2

41 1/2

43 1/2

12 1/4

48 3/4

18 3/4

2 1/4

5 1/2

19 3/8

31

2,979.00

16.54

18 1/2

15 3/4

PLB23184

17

44 1/2

46 5/8

14 1/2

52 3/4

22 1/4

2 1/4

5 1/2

21 3/4

34

3,894.00

17.32

19 1/2

17

PLB23188

17

44 1/2

46 5/8

14 1/2

52 3/4

22 1/4

2 1/4

5 1/2

21 3/4

34

3,852.00

18.11

20

17 3/4

PLB23192

18

47 1/8

48 7/8

15

54 1/4

21 5/8

2 1/2

5 3/4

22 3/4

35 3/4

4,391.00
