| PLB6859FR、PLB68M110FR、PLB6872FR |
|
上海川代轴承机械有限公司 新闻动态 2025-4-24
|
 |
|
V

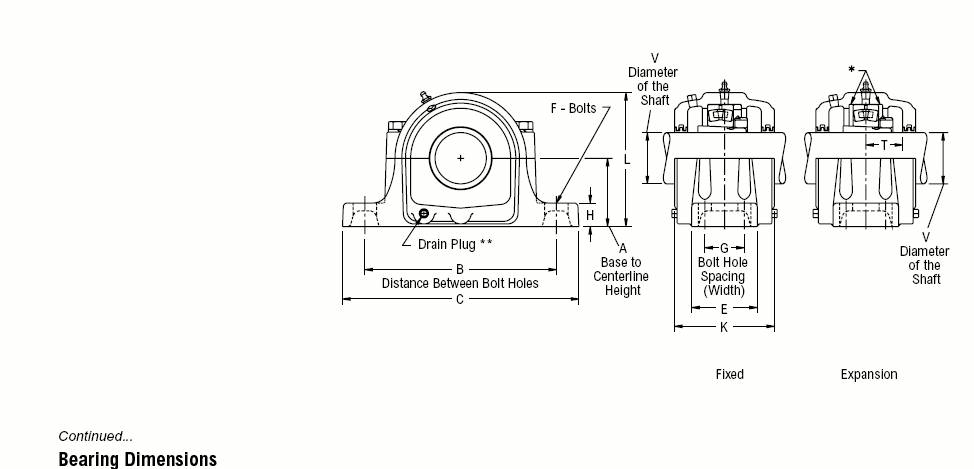

Shaft Diameter |
Part Number |
A
Base to
Centerline Height |
B Min.
Distance Between
Bolt Holes |
B Max.
Distance
Between
Bolt Holes |
G
Bolt Hole
Spacing (Width) |
C |
E |
F
Bolts |
H |
K |
L |
P |
T |
Approx. Weight |
|
90.00 |
PLB68M90FR |
114.30 |
295.30 |
333.40 |
60.30 |
387.40 |
114.30 |
20.00 |
38.10 |
152.40 |
225.40 |
298.40 |
48.40 |
30.80 |
|
3 11/16 |
PLB6859FR |
4 15/16 |
12 5/8 |
14 1/2 |
2 3/4 |
16 1/2 |
4 3/4 |
3/4 |
2 |
6 1/2 |
9 5/8 |
12 1/4 |
2 1/8 |
87.00 |
|
3 15/16 |
PLB6863FR |
|
4 |
PLB6864FR |
|
100.00 |
PLB68M100FR |
125.41 |
320.70 |
368.30 |
69.80 |
419.10 |
120.60 |
20.00 |
50.80 |
165.10 |
244.50 |
311.20 |
54.00 |
39.50 |
|
4 3/16 |
PLB6867FR |
5 1/4 |
13 1/4 |
14 1/2 |
2 3/4 |
16 1/2 |
4 3/4 |
3/4 |
1 3/4 |
7 1/8 |
10 7/16 |
13 1/2 |
2 9/32 |
104.00 |
|
110.00 |
PLB68M110FR |
133.35 |
336.60 |
368.30 |
69.80 |
419.10 |
120.60 |
20.00 |
44.40 |
181.00 |
265.10 |
342.90 |
57.90 |
47.20 |
|
4 7/16 |
PLB6871FR |
6 |
14 5/8 |
16 |
3 1/4 |
18 3/8 |
5 1/8 |
7/8 |
2 3/8 |
7 3/4 |
11 11/32 |
14 1/2 |
2 15/32 |
149.00 |
|
4 1/2 |
PLB6872FR |
|
115.00 |
PLB68M115FR |
152.40 |
371.50 |
406.40 |
82.60 |
466.70 |
130.20 |
24.00 |
60.33 |
196.80 |
288.10 |
368.30 |
62.70 |
63.50 |
|
4 15/16 |
PLB6879FR |
6 |
16 |
17 1/8 |
3 3/8 |
20 1/8 |
5 7/8 |
1 |
2 3/8 |
7 3/4 |
11 13/16 |
15 1/2 |
2 5/8 |
167.00 |
|
5 |
PLB6880FR |
|
125.00 |
PLB68M125FR |
152.40 |
406.40 |
435.00 |
85.70 |
511.20 |
149.20 |
24.00 |
60.33 |
196.80 |
300.00 |
393.70 |
66.70 |
71.20 |
|
5 3/16 |
PLB6883FR |
6 5/16 |
17 |
18 1/4 |
3 3/4 |
21 1/4 |
6 1/4 |
1 |
2 |
8 1/8 |
12 9/16 |
16 |
2 3/4 |
187.00 |
|
135.00 |
PLB68M135FR |
160.34 |
431.80 |
463.60 |
95.20 |
539.80 |
158.80 |
24.00 |
50.80 |
206.40 |
319.10 |
406.40 |
69.80 |
84.80 |
|
5 7/16 |
PLB6887FR |
6 11/16 |
17 3/8 |
19 1/4 |
3 3/4 |
22 |
6 1/4 |
1 |
2 5/8 |
8 1/2 |
13 3/8 |
17 |
2 31/32 |
221.00 |
|
140.00 |
PLB68M140FR |
169.86 |
441.30 |
489.00 |
95.20 |
558.80 |
158.80 |
24.00 |
66.68 |
215.90 |
339.70 |
431.80 |
75.40 |
94.80 |
|
5 15/16 |
PLB6895FR |
7 1/16 |
19 3/8 |
21 5/8 |
4 1/4 |
24 3/4 |
6 3/4 |
1 |
2 3/4 |
9 1/4 |
14 1/4 |
18 |
3 1/8 |
280.00 |
|
6 |
PLB6896FR |
|
150.00 |
PLB68M150FR |
179.39 |
492.10 |
549.30 |
108.00 |
628.60 |
171.40 |
24.00 |
69.85 |
235.00 |
362.00 |
457.20 |
79.40 |
119.80 |
|
6 7/16 |
PLB68103FR |
7 1/2 |
20 7/8 |
23 5/8 |
4 5/8 |
26 3/4 |
7 1/8 |
1 |
3 |
9 7/8 |
14 15/16 |
18 3/4 |
3 5/32 |
304.00 |
|
6 1/2 |
PLB68104FR |
|
160.00 |
PLB68M160FR |
190.50 |
530.20 |
600.10 |
117.50 |
679.40 |
181.00 |
24.00 |
76.20 |
250.83 |
379.40 |
476.20 |
80.20 |
137.90 |
|
6 15/16 |
PLB68111FR |
7 7/8 |
21 5/8 |
24 3/8 |
4 1/2 |
28 |
7 1/2 |
1 1/4 |
3 1/8 |
10 5/8 |
15 13/16 |
20 1/2 |
3 5/16 |
370.00 |
|
7 |
PLB68112FR |
|
170.00 |
PLB68M170FR |
200.02 |
549.30 |
619.10 |
114.30 |
711.20 |
190.50 |
30.00 |
79.38 |
269.88 |
401.60 |
520.70 |
84.10 |
167.80 |
|
7 3/16 |
PLB68115FR |
8 1/4 |
22 1/2 |
25 |
5 |
29 1/2 |
8 |
1 1/4 |
2 3/8 |
11 |
16 3/4 |
22 1/4 |
3 17/32 |
450.00 |
|
180.00 |
PLB68M180FR |
209.55 |
571.50 |
635.00 |
127.00 |
749.30 |
203.20 |
30.00 |
60.30 |
279.40 |
425.40 |
565.20 |
89.70 |
204.10 |
|
7 1/2 |
PLB68120FR |
9 1/2 |
24 3/4 |
27 7/8 |
5 1/4 |
32 3/4 |
8 3/4 |
1 1/2 |
3 3/4 |
11 3/16 |
18 9/16 |
24 1/2 |
3 13/16 |
675.00 |
|
7 15/16 |
PLB22544K71516 |
11 7/8 |
18 5/8 |
- |
- |
665.00 |
|
PLB68127FR |
11 3/16 |
18 9/16 |
24 1/2 |
3 13/16 |
|
8 |
PLB22544K8 |
7 |
5 |
- |
- |
|
PLB68128FR |
11 3/16 |
18 9/16 |
24 1/2 |
3 13/16 |
|
200.00 |
PLB68M200FR |
241.30 |
628.60 |
708.00 |
133.40 |
831.80 |
222.20 |
36.00 |
95.25 |
284.20 |
471.50 |
622.30 |
96.80 |
301.60 |
|
PLB6859FR、PLB68M110FR、PLB6872FR现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
