| ZD5065MM、ZD5208、ZD5303 |
|
上海川代轴承机械有限公司 新闻动态 2025-10-22
|
 |
|

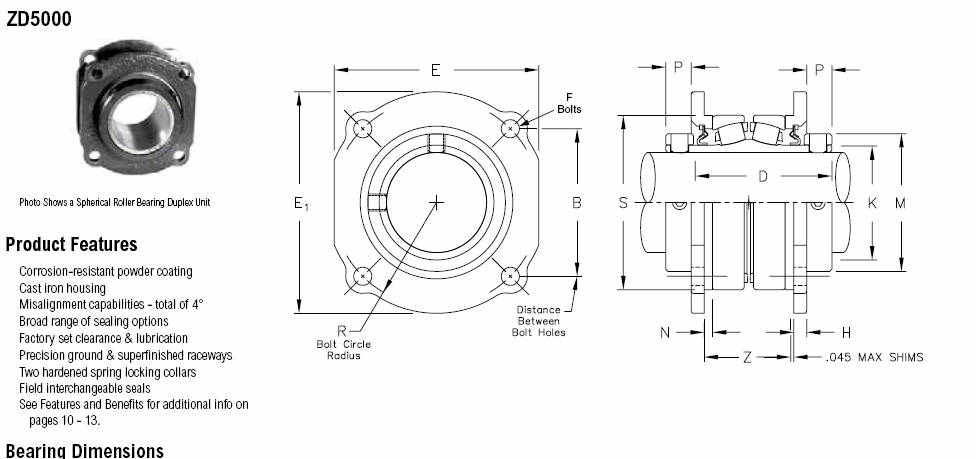

Shaft
Diameter |
Part Number |
B
Distance Between Bolt Holes |
R
Bolt
Circle
Radius |
D |
E1 |
E |
F
Bolts |
H |
K |
M |
N |
P |
S |
Z |
Recommended Housing Bore
Diameter |
重量 |
|
1 7/16 |
ZD5107 |
2 9/16 |
1 13/16 |
3 9/16 |
3 3/4 |
3 5/16 |
3/8 |
5/16 |
1 3/4 |
2 5/16 |
7/32 |
5/8 |
2.8380 |
1.725 |
2.8360 |
3.40 |
|
35.00 |
ZD5035MM |
65.09 |
46.04 |
90.49 |
96.30 |
84.14 |
10.00 |
7.94 |
44.450 |
58.74 |
5.54 |
15.88 |
72.0852 |
43.815 |
72.0344 |
1.50 |
|
1 1/2 |
ZD5108 |
2 7/8 |
2 1/32 |
3 13/16 |
4 1/4 |
3 3/4 |
3/8 |
5/16 |
2 1/32 |
2 19/32 |
3/16 |
5/8 |
3.3500 |
1.930 |
3.3480 |
5.40 |
|
1 11/16 |
ZD5111 |
4.80 |
|
40.00 |
ZD5040MM |
73.02 |
15.59 |
96.84 |
107.95 |
95.25 |
10.00 |
7.94 |
26.190 |
65.88 |
5.02 |
15.88 |
85.0900 |
49.022 |
85.0392 |
2.50 |
|
45.00 |
ZD5045MM |
2.30 |
|
1 15/16 |
ZD5115 |
3 |
2 1/8 |
3 13/16 |
4 1/2 |
4 |
3/8 |
5/16 |
2 5/16 |
2 7/8 |
3/16 |
21/32 |
3.5470 |
1.875 |
3.5450 |
5.20 |
|
50.00 |
ZD5050MM |
76.20 |
59.98 |
96.84 |
114.30 |
101.60 |
10.00 |
7.94 |
58.740 |
73.03 |
5.02 |
16.66 |
90.0938 |
47.625 |
90.0430 |
2.40 |
|
2 |
ZD5200 |
3 13/ |
2 13 |
1 |
1 |
9 |
7 |
5 |
5 |
1 |
1 |
11 |
3.9400 |
1.880 |
3.9390 |
7.90 |
|
2 3/16 |
ZD5203 |
7.30 |
|
55.00 |
ZD5055MM |
85.52 |
61.11 |
104.78 |
130.18 |
115.89 |
11.00 |
7.94 |
2 5/8 |
82.55 |
3.18 |
17.45 |
100.0760 |
47.752 |
86.1822 |
3.30 |
|
2 7/16 |
ZD5207 |
3 23/32 |
2 5/8 |
4 3/8 |
5 1/2 |
4 15/16 |
1/2 |
5/16 |
2 29/32 |
3 9/16 |
1/4 |
3/4 |
4.3340 |
2.225 |
4.3320 |
8.80 |
|
60.00 |
ZD5060MM |
94.43 |
66.68 |
111.13 |
139.70 |
125.41 |
13.00 |
7.94 |
73.810 |
90.49 |
6.35 |
19.05 |
110.0836 |
56.515 |
110.0328 |
4.00 |
|
65.00 |
ZD5065MM |
|
2 1/2 |
ZD5208 |
4 21/64 |
3 1/16 |
4 7/8 |
6 1/2 |
6 |
1/2 |
3/8 |
3 3/8 |
4 1/16 |
1/4 |
3/4 |
5.1200 |
2.600 |
5.1190 |
16.60 |
|
2 11/16 |
ZD5211 |
15.30 |
|
2 15/16 |
ZD5215 |
13.20 |
|
70.00 |
ZD5070MM |
109.93 |
77.79 |
123.83 |
165.10 |
152.40 |
13.00 |
9.53 |
85.730 |
103.19 |
6.35 |
19.05 |
130.0480 |
66.040 |
130.0226 |
7.00 |
|
75.00 |
ZD5075MM |
6.70 |
|
3 3/16 |
ZD5303 |
4 61/64 |
3 1/2 |
5 5/16 |
7 3/8 |
6 13/16 |
5/8 |
7/16 |
3 31/32 |
4 29/32 |
3/16 |
7/8 |
5.9080 |
2.664 |
5.9060 |
21.20 |
|
3 7/16 |
ZD5307 |
19.40 |
|
80.00 |
ZD5080MM |
125.80 |
88.90 |
134.94 |
187.33 |
173.04 |
16.00 |
11.11 |
100.810 |
124.62 |
5.02 |
22.23 |
105.0632 |
67.666 |
150.0124 |
9.60 |
|
85.00 |
ZD5085MM |
9.40 |
|
90.00 |
ZD5090MM |
9.10 |
|
3 11/16 |
ZD5311 |
6 3/16 |
4 3/8 |
6 1/8 |
9 1/8 |
8 5/8 |
5/8 |
17/32 |
4 9/16 |
5 5/8 |
15/64 |
1 |
7.0890 |
3.190 |
7.0880 |
38.00 |
|
3 15/16 |
ZD5315 |
35.00 |
|
4 |
ZD5400 |
34.00 |
|
100.00 |
ZD5100MM |
157.16 |
111.13 |
155.58 |
231.78 |
219.08 |
16.00 |
13.49 |
115.890 |
142.88 |
5.94 |
25.40 |
180.0606 |
81.026 |
180.0352 |
15.90 | |
ZD5065MM、ZD5208、ZD5303现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
