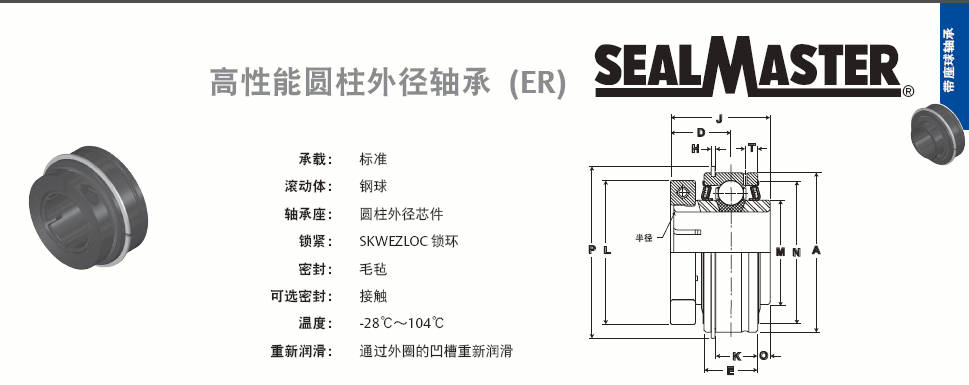

| 圆柱外径轴承ER-12T、ER-20RT、ER-22T、ER-26T、ER-32T |
|
上海川代轴承机械有限公司 新闻动态 2026-3-7
|
|
|
|
|
承载： 标准
滚动体： 钢球
轴承座： 圆柱外径芯件
锁紧： SKWEZLOC 锁环
密封： 毛毡
可选密封： 接触
温度： -28℃～104℃
重新润滑： 通过外圈的凹槽重新润滑
ER-T 圆柱外径轴承 － SKWEZLOC 锁环 － 英制 |
|
|
孔径 |
轴承芯件
-编号 |
基本动态
-额定载荷
-磅/牛 |
尺寸（英寸/毫米） |
最大清角
-半径 |
单元-
重量-
磅/公斤 |
|
|
A |
D |
E |
H |
J |
K |
L |
M |
N |
O |
P |
T |
|
|
英寸 |
|
|
3/4 |
ER-12T |
2611
11614 |
1.8504
47.0 |
7/8
19.8 |
5/8
15.9 |
3/64
1.2 |
1-9/32
32.5 |
31/64
12.3 |
1-3/4
44.5 |
1-3/16
30.2 |
1-5/8
41.3 |
.094
2.39 |
2-1/16
52.4 |
1/8
3.2 |
.04
1.02 |
.56
.25 |
|
|
1 |
ER-16T |
2801
12459 |
2.0472
52.0 |
59/64
22.1 |
3/4
19.1 |
3/64
1.2 |
1-7/16
36.5 |
39/64
15.5 |
1-15/16
49.2 |
1-3/8
34.9 |
1-27/32
46.8 |
.135
3.43 |
2-17/64
57.5 |
13/64
5.2 |
.04
1.02 |
.68
.31 |
|
|
1-1/8
1-3/16
1-1/4 |
ER-18T
ER-19T
ER-20RT |
4381
19487 |
2.4409
62.0 |
15/16
23.8 |
7/8
22.2 |
1/16
1.6 |
1-9/16
39.7 |
11/16
17.5 |
2-3/16
55.6 |
1-19/32
40.5 |
2-5/32
54.8 |
.188
4.78 |
2-21/32
67.5 |
7/32
5.6 |
.04
1.02 |
.93
.42 |
|
|
1-1/4 |
ER-20T |
5782
25718 |
2.8346
72.0 |
1-1/16
27.0 |
15/16
23.8 |
1/16
1.6 |
1-3/4
44.5 |
3/4
19.1 |
2-7/16
61.9 |
1-55/64
47.2 |
2-17/32
64.3 |
.219
5.56 |
3-5/64
78.2 |
7/32
5.6 |
.04
1.02 |
1.37
.62 |
|
|
1-3/8
1-7/16 |
ER-22T
ER-23T |
5782
25718 |
2.8346
72.0 |
1-1/16
27.0 |
15/16
23.8 |
1/16
1.6 |
1-3/4
44.5 |
3/4
19.1 |
2-9/16
65.1 |
1-55/64
47.2 |
2-17/32
64.3 |
.219
5.56 |
3-5/64
78.2 |
7/32
5.6 |
.04
1.02 |
1.37
.62 |
|
|
1-1/2 |
ER-24T |
7340
32648 |
3.1496
80.0 |
1-1/4
31.8 |
1-3/32
27.8 |
1/16
1.6 |
2
50.8 |
29/32
23.0 |
2-11/16
68.3 |
2-1/16
52.4 |
2-53/64
71.8 |
.203
5.16 |
3-13/32
86.5 |
1/4
6.4 |
.06
1.57 |
2.00
.91 |
|
|
1-5/8 |
ER-26T |
7901
35144 |
3.3465
85.0 |
1-1/4
31.8 |
1-3/32
27.8 |
1/16
1.6 |
2
50.8 |
29/32
23.0 |
2-13/16
71.4 |
2-19/64
58.3 |
3-1/32
77.0 |
.203
5.16 |
3-19/32
91.3 |
1/4
6.4 |
.06
1.57 |
2.31
1.05 |
|
|
1-11/16
1-3/4 |
ER-27T
ER-28T |
7901
35144 |
3.3465
85.0 |
1-1/4
31.8 |
1-3/32
27.8 |
1/16
1.6 |
2
50.8 |
29/32
23.0 |
2-15/16
74.6 |
2-19/64
58.3 |
3-1/32
77.0 |
.203
5.16 |
3-19/32
91.3 |
1/4
6.4 |
.06
1.57 |
2.31
1.05 |
|
|
1-15/16 |
ER-31T |
7889
35090 |
3.5433
90.0 |
1-11/32
34.1 |
1-1/8
28.6 |
3/32
2.4 |
2-3/32
53.2 |
29/32
23.0 |
3-3/8
85.7 |
2-15/32
62.7 |
3-7/32
81.8 |
.188
4.78 |
3-25/32
96.0 |
19/64
7.5 |
.06
1.57 |
2.43
1.10 |
|
|
2 |
ER-32T |
9752
43377 |
3.9370
100.0 |
1-3/8
34.9 |
1-3/16
30.2 |
3/32
2.4 |
2-1/4
57.2 |
31/32
24.6 |
3-1/2
88.9 |
2-23/32
69.1 |
3-9/16
90.5 |
.281
7.14 |
4-3/16
106.4 |
19/64
7.5 |
.08
2.03 |
3.00
1.36 |
|
|
2-3/16 |
ER-35T |
9752
43377 |
3.9370
100.0 |
1-3/8
34.9 |
1-3/16
30.2 |
3/32
2.4 |
2-1/4
57.2 |
31/32
24.6 |
3-5/8
92.1 |
2-23/32
69.1 |
3-9/16
90.5 |
.281
7.14 |
4-3/16
106.4 |
19/64
7.5 |
.08
2.03 |
3.00
1.36 |
|
|
2-1/4 |
ER-36T |
11789
52437 |
4.3307
110.0 |
1-5/8
41.3 |
1-1/4
31.8 |
3/32
2.4 |
2-5/8
66.7 |
1-1/32
26.2 |
4-1/16
103.2 |
2-63/64
75.8 |
3-29/32
99.2 |
.375
9.53 |
4-37/64
116.3 |
19/64
7.5 |
.08
2.03 |
4.00
1.81 |
|
|
2-3/8
2-7/16 |
ER-38T
ER-39T |
11789
52437 |
4.3307
110.0 |
1-5/8
41.3 |
1-1/4
31.8 |
3/32
2.4 |
2-5/8
66.7 |
1-1/32
26.2 |
4-1/8
104.8 |
2-63/64
75.8 |
3-29/32
99.2 |
.375
9.53 |
4-37/64
116.3 |
19/64
7.5 |
.08
2.03 |
4.00
1.81 |
| |
