| 标准型膨胀芯件AR-2-08、AR-2-010、AR-2-013 |
|
上海川代轴承机械有限公司 新闻动态 2025-10-17
|
|
|
|
|

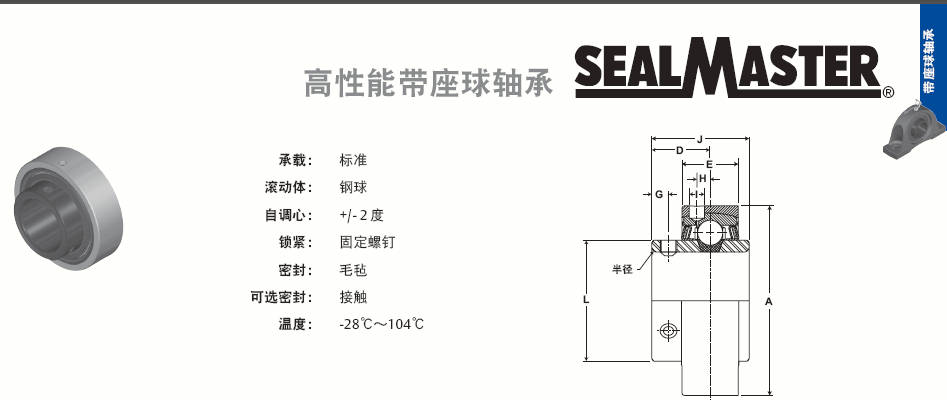

承载： 标准
滚动体： 钢球
自调心： +/- 2 度
锁紧： 固定螺钉
密封： 毛毡
可选密封： 接触
温度： -28℃～104℃
AR 系列标准型膨胀芯件 － 固定螺钉锁定
|
|
|
孔径 |
型号 |
轴承芯
件-编号 |
基本动态
-额定载荷
-磅/牛 |
尺寸（英寸/毫米） |
最大清角
-半径 |
固定螺
钉-螺纹 |
单元-
重量-
磅/公斤 |
|
|
A |
D |
E |
G |
H |
I |
J |
L |
|
|
+.000”
-.005” |
|
|
英寸 |
毫米 |
|
|
1/2
9/16
5/8
11/16
3/4 |
20 |
AR-2-08
AR-2-09
AR-2-010
AR-2-011
AR-2-012
AR-204 |
2-08
2-09
2-010
2-011
2-012
5204 |
2611
11614 |
2.062
52.375 |
23/32
18.3 |
49/64
19.4 |
3/16
4.8 |
1/8
3.2 |
1/4
6.4 |
1-7/32
31.0 |
1-3/16
30.2 |
.040
1.02 |
1/4-28 |
.8
.36 |
|
|
13/16
7/8
15/16
1 |
25 |
AR-2-013
AR-2-014
AR-2-015
AR-2-1
AR-205 |
2-013
2-014
2-015
2-1
5205 |
2801
12459 |
2.272
57.709 |
13/16
20.6 |
49/64
19.4 |
7/32
5.6 |
11/64
4.4 |
1/4
6.4 |
1-3/8
34.9 |
1-3/8
34.9 |
.040
1.02 |
1/4-28 |
1.0
.45 |
|
|
1-1/16
1-1/8
1-3/16
1-1/4 |
30 |
AR-2-11
AR-2-12
AR-2-13
AR-1-14
AR-206 |
2-11
2-12
2-13
1-14
5206 |
4381
19487 |
2.687
68.250 |
7/8
22.2 |
61/64
24.2 |
7/32
5.6 |
7/32
5.6 |
1/4
6.4 |
1-1/2
38.1 |
1-19/32
40.5 |
.040
1.02 |
1/4-28 |
1.5
.68 |
|
|
1-1/4
1-5/16
1-3/8
1-7/16 |
35 |
AR-2-14
AR-2-15
AR-2-16
AR-2-17
AR-207 |
2-14
2-15
2-16
2-17
5207 |
5782
25718 |
3.140
79.756 |
1
25.4 |
1-1/64
25.8 |
1/4
6.4 |
1/4
6.4 |
1/4
6.4 |
1-11/16
42.9 |
1-55/64
47.2 |
.040
1.02 |
5/16-24 |
2.1
.95 |
|
|
1-1/2
1-9/16 |
40 |
AR-2-18
AR-2-19
AR-208 |
2-18
2-19
5208 |
7340
32648 |
3.375
85.725 |
1-3/16
30.2 |
1-11/64
29.8 |
5/16
7.9 |
19/64
7.5 |
1/4
6.4 |
1-15/16
49.2 |
2-1/16
52.4 |
.062
1.57 |
5/16-24 |
2.8
1.27 |
|
|
1-5/8
1-11/16
1-3/4 |
45 |
AR-2-110
AR-2-111
AR-2-112
AR-209 |
2-110
2-111
2-112
5209 |
7901
35144 |
3.562
90.475 |
1-3/16
30.2 |
1-11/64
29.8 |
5/16
7.9 |
19/64
7.5 |
1/4
6.4 |
1-15/16
49.2 |
2-19/64
58.3 |
.062
1.57 |
5/16-24 |
3
1.36 |
|
|
1-13/16
1-7/8
1-15/16
2 |
50 |
AR-2-113
AR-2-114
AR-2-115
AR-1-2
AR-210 |
2-113
2-114
2-115
1-2
5210 |
7889
35090 |
3.875
98.425 |
1-9/32
32.5 |
1-13/64
30.6 |
3/8
9.5 |
17/64
6.7 |
11/32
8.7 |
2-1/32
51.6 |
2-15/32
62.7 |
.062
1.57 |
3/8-24 |
3.5
1.59 |
|
|
2
2-1/8
2-3/16 |
55 |
AR-2-2
AR-2-22
AR-2-23
AR-211 |
2-2
2-22
2-23
5211 |
9752
43377 |
4.250
107.950 |
1-5/16
33.3 |
1-17/64
32.1 |
3/8
9.5 |
19/64
7.5 |
11/32
8.7 |
2-3/16
55.6 |
2-23/32
69.1 |
.080
2.03 |
3/8-24 |
4.4
2.00 |
|
|
2-1/4
2-3/8
2-7/16 |
60 |
AR-2-24
AR-2-26
AR-2-27
AR-212 |
2-24
2-26
2-27
5212 |
11789
52437 |
4.718
119.837 |
1-9/16
39.7 |
1-21/64
33.7 |
7/16
11.1 |
21/64
8.3 |
11/32
8.7 |
2-9/16
65.1 |
2-63/64
75.8 |
.080
2.03 |
3/8-24 |
5.8
2.63 |
|
|
2-11/16 |
70 |
AR-2-211
AR-214 |
2-211
5214 |
13971
62143 |
5.170
131.318 |
1-11/16
42.9 |
1-29/64
36.9 |
7/16
11.1 |
3/8
9.5 |
11/32
8.7 |
2-3/4
69.9 |
3-7/16
87.3 |
.080
2.03 |
7/16-20 |
9.3
4.22 |
|
|
2-7/8
2-15/16 |
75 |
AR-2-214
AR-2-215
AR-215 |
2-214
2-215
5215 |
14839
66004 |
5.375
136.525 |
1-3/4
44.5 |
1-37/64
40.1 |
7/16
11.1 |
3/8
9.5 |
11/32
8.7 |
3-1/16
77.8 |
3-41/64
92.5 |
.080
2.03 |
7/16-20 |
9.6
4.35 |
|
|
3-3/16
3.150 |
80 |
AR-2-33
AR-216 |
2-33
5216 |
17412
77449 |
5.875
149.225 |
1-15/16
49.2 |
1-53/64
46.4 |
17/32
13.5 |
13/32
10.3 |
15/32
11.9 |
3-1/4
82.6 |
3-59/64
99.6 |
.120
3.0 |
7/16-20 |
12.2
5.53 |
|
|
3-1/4
3-3/8
3-7/16 |
|
AR-2-34
AR-2-36
AR-2-37 |
2-34
2-36
2-37 |
18681
83093 |
6.280
159.512 |
2-1/32
51.6 |
2-5/64
52.8 |
15/32
11.9 |
17/32
13.5 |
15/32
11.9 |
3-3/8
85.7 |
4-5/32
105.6 |
.120
3.05 |
7/16-20 |
15.2
6.89 |
|
|
3-1/2 |
90 |
AR-2-38
AR-218 |
2-38
5218 |
21566
95926 |
6.750
171.450 |
2-7/32
56.4 |
2-9/64
54.4 |
5/8
15.9 |
15/32
11.9 |
15/32
11.9 |
3-25/32
96.0 |
4-25/64
111.5 |
.120
3.05 |
1/2-20 |
18.5
8.39 |
| |
标准型膨胀芯件AR-2-08、AR-2-010、AR-2-013现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
