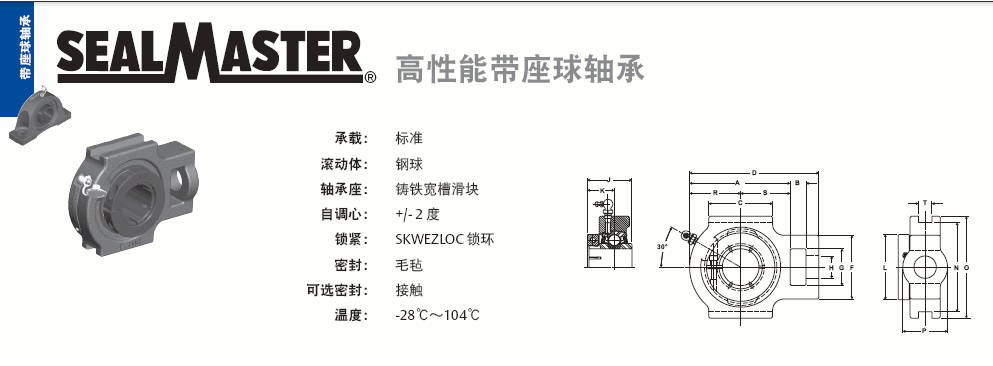

| 标准型滑块单元ST-12T、ST-15T、ST-16T、ST-18T、ST-22T |
|
上海川代轴承机械有限公司 新闻动态 2025-1-15
|
|
|
|
承载： 标准
滚动体： 钢球
轴承座： 铸铁宽槽滑块
自调心： +/- 2 度
锁紧： SKWEZLOC 锁环
密封： 毛毡
可选密封： 接触
温度： -28℃～104℃
ST-T 系列标准型滑块单元 － SKWEZLOC 锁环 |
|
孔径 |
型号 |
轴承芯件
-编号 |
基本动态
-
额定
载荷-磅/牛 |
尺寸（英寸/毫米） |
单元-
重量
-磅/公斤 |
|
A |
B |
C |
D |
F |
G |
H |
J |
K |
L |
N |
O |
P |
R |
S |
T |
|
英寸 |
芯 |
毂 |
|
3/4 |
ST-12T |
2-012T |
2611
11614 |
2-11/16
68.3 |
5/8
15.9 |
2
50.8 |
3-11/16
93.7 |
2
50.8 |
1-1/4
31.8 |
3/4
19.1 |
1-9/32
32.5 |
25/32
19.8 |
1-3/4
44.5 |
3
76.2 |
3-1/2
88.9 |
1-3/8
34.9 |
1-5/16
33.3 |
1-3/8
34.9 |
17/32 |
2.2
1.00 |
|
15/16
1 |
ST-15T
ST-16T |
2-015T
2-1T |
2801
12459 |
2-13/16
71.4 |
5/8
15.9 |
2
50.8 |
3-13/16
96.8 |
2
50.8 |
1-1/4
31.8 |
3/4
19.1 |
1-7/16
36.5 |
7/8
22.2 |
1-15/16
49.2 |
3
76.2 |
3-1/2
88.9 |
1-1/2
38.1 |
1-3/8
34.9 |
1-7/16
36.5 |
17/32 |
2.8
1.27 |
|
1-1/8
1-3/16 |
ST-18T
ST-19T |
2-12T
2-13T |
4381
19487 |
3-7/16
87.3 |
5/8
15.9 |
2-1/4
57.2 |
4-7/16
112.7 |
2-3/16
55.6 |
1-7/16
36.5 |
7/8
22.2 |
1-9/16
39.7 |
15/16
23.8 |
2-3/16
55.6 |
3-1/2
88.9 |
4
101.6 |
1-3/4
44.5 |
1-11/16
42.9 |
1-3/4
44.5 |
17/32 |
3.6
1.63 |
|
1-1/4 |
ST-20T |
2-14T |
5782
25718 |
3-15/16
100.0 |
5/8
15.9 |
2-1/2
63.5 |
5-1/16
128.6 |
2-1/2
63.5 |
1-7/16
36.5 |
7/8
22.2 |
1-3/4
44.5 |
1-1/16
27.0 |
2-7/16
61.9 |
3-1/2
88.9 |
4
101.6 |
1-3/4
44.5 |
2
50.8 |
1-15/16
49.2 |
17/32 |
4.3
1.95 |
|
1-3/8
1-7/16 |
ST-22T
ST-23T |
2-16T
2-17T |
5782
25718 |
3-15/16
100.0 |
5/8
15.9 |
2-1/2
63.5 |
5-1/16
128.6 |
2-1/2
63.5 |
1-7/16
36.5 |
7/8
22.2 |
1-3/4
44.5 |
1-1/16
27.0 |
2-9/16
65.1 |
3-1/2
88.9 |
4
101.6 |
1-3/4
44.5 |
2
50.8 |
1-15/16
49.2 |
17/32 |
4.3
1.95 |
|
1-1/2
1-9/16 |
ST-24T
ST-25T |
2-18T
2-19T |
7340
32648 |
4-5/16
109.5 |
3/4
19.1 |
3-1/4
82.6 |
5-11/16
144.5 |
3-1/4
82.6 |
1-15/16
49.2 |
1-1/8
28.6 |
2
50.8 |
1-1/4
31.8 |
2-11/16
68.3 |
4
101.6 |
4-1/2
114.3 |
2-1/8
54.0 |
2-3/16
55.6 |
2-1/8
54.0 |
11/16 |
6.3
2.86 |
|
1-5/8 |
ST-26T |
2-110T |
7901
35144 |
4-5/16
109.5 |
3/4
19.1 |
3-1/4
82.6 |
5-11/16
144.5 |
3-1/4
82.6 |
1-15/16
49.2 |
1-1/8
28.6 |
2
50.8 |
1-1/4
31.8 |
2-13/16
71.4 |
4
101.6 |
4-5/8
117.5 |
2-3/16
55.6 |
2-1/4
57.2 |
2-1/16
52.4 |
11/16 |
6.3
2.86 |
|
1-11/16
1-3/4 |
ST-27T
ST-28T |
2-111T
2-112T |
7901
35144 |
4-5/16
109.5 |
3/4
19.1 |
3-1/4
82.6 |
5-11/16
144.5 |
3-1/4
82.6 |
1-15/16
49.2 |
1-1/8
28.6 |
2
50.8 |
1-11/32
34.1 |
2-15/16
74.6 |
4
101.6 |
4-5/8
117.5 |
2-3/16
55.6 |
2-1/4
57.2 |
2-1/16
52.4 |
11/16 |
6.3
2.86 |
|
1-15/16
2 |
ST-31T
ST-32RT |
2-115T
1-2T |
7889
35090 |
4-1/2
114.3 |
3/4
19.1 |
3-3/8
85.7 |
5-7/8
149.2 |
3-1/4
82.6 |
1-15/16
49.2 |
1-1/8
28.6 |
2-3/32
53.2 |
1-1/4
31.8 |
3-3/8
85.7 |
4
101.6 |
4-5/8
117.5 |
2-3/16
55.6 |
2-5/16
58.7 |
2-3/16
55.6 |
11/16 |
6.6
2.99 |
|
2 |
ST-32T |
2-2T |
9752
43377 |
5
127.0 |
1
25.4 |
3-3/4
95.3 |
6-3/4
171.5 |
4
101.6 |
2-1/2
63.5 |
1-3/8
34.9 |
2-1/4
57.2 |
1-3/8
34.9 |
3-1/2
88.9 |
5-1/8
130.2 |
5-3/4
146.1 |
2-1/4
57.2 |
2-9/16
65.1 |
2-7/16
61.9 |
1-1/16 |
10.4
4.72 |
|
2-1/8
2-3/16 |
ST-34T
ST-35T |
2-22T
2-23T |
9752
43377 |
5
127.0 |
1
25.4 |
3-3/4
95.3 |
6-3/4
171.5 |
4
101.6 |
2-1/2
63.5 |
1-3/8
34.9 |
2-1/4
57.2 |
1-3/8
34.9 |
3-5/8
92.1 |
5-1/8
130.2 |
5-3/4
146.1 |
2-1/4
57.2 |
2-9/16
65.1 |
2-7/16
61.9 |
1-1/16 |
10.4
4.72 |
|
2-1/4 |
ST-36T |
2-24T |
11789
52437 |
5-5/8
142.9 |
1-1/4
31.8 |
4
101.6 |
7-5/8
193.7 |
4
101.6 |
2-1/2
63.5 |
1-3/8
34.9 |
2-5/8
66.7 |
1-5/8
41.3 |
4-1/16
103.2 |
5-1/8
130.2 |
5-3/4
146.1 |
2-3/8
60.3 |
2-15/16
74.6 |
2-11/16
68.3 |
1-1/16 |
13.4
6.08 |
|
2-3/8
2-7/16 |
ST-38T
ST-39T |
2-26T
2-27T |
11789
52437 |
5-5/8
142.9 |
1-1/4
31.8 |
4
101.6 |
7-5/8
193.7 |
4
101.6 |
2-1/2
63.5 |
1-3/8
34.9 |
2-5/8
66.7 |
1-5/8
41.3 |
4-1/8
104.8 |
5-1/8
130.2 |
5-3/4
146.1 |
2-3/8
60.3 |
2-15/16
74.6 |
2-11/16
68.3 |
1-1/16 |
13.4
6.08 | |
标准型滑块单元ST-12T、ST-15T、ST-16T、ST-18T、ST-22T现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
