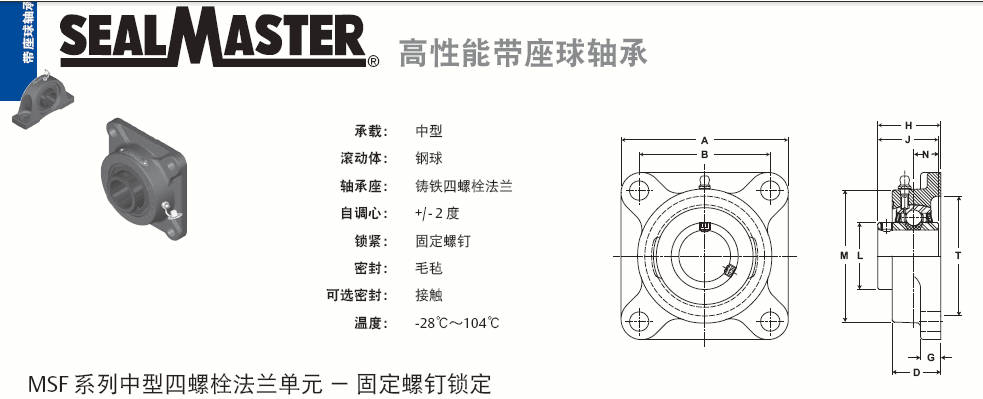

MSF 系列中型四螺栓法兰单元 － 固定螺钉锁定
|
|
|
孔径 |
型号 |
轴承芯
-件编号 |
基本动态
-额定载荷
-磅/牛 |
尺寸（英寸/毫米） |
螺栓
-尺寸 |
单元-
重量-
磅/公斤 |
|
|
A |
B* |
D |
G |
H |
J |
N |
L |
M |
T-芯 |
|
|
英寸 |
毫米 |
|
|
15/16
1 |
25 |
MSF-15
MSF-16
MSF-305 |
3-015
3-1
5305 |
4381
19487 |
4-1/4
108.0 |
3-1/4
82.6 |
1-11/64
29.8 |
17/32
13.5 |
1-9/16
39.7 |
1-1/2
38.1 |
5/8
15.9 |
1-19/32
40.5 |
3-7/32
81.8 |
2-7/8
73.0 |
7/16 |
3.6
1.63 |
|
|
1-3/16
1-1/4 |
30 |
MSF-19
MSF-20
MSF-306 |
3-13
2-14
5306 |
5782
25718 |
4-5/8
117.5 |
3-5/8
92.1 |
1-11/32
34.1 |
9/16
14.3 |
1-3/4
44.5 |
1-11/16
42.9 |
11/16
17.5 |
1-55/64
47.2 |
3-23/32
94.5 |
3-5/16
84.1 |
1/2 |
4.1
1.86 |
|
|
1-7/16 |
35 |
MSF-23
MSF-307 |
3-17
5307 |
7340
32648 |
5-1/8
130.2 |
4
101.6 |
1-1/2
38.1 |
9/16
14.3 |
2-1/64
51.2 |
1-15/16
49.2 |
3/4
19.1 |
2-1/16
52.4 |
4-5/64
103.6 |
3-1/2
88.9 |
1/2 |
5.5
2.49 |
|
|
1-1/2 |
40 |
MSF-24
MSF-308 |
3-18
5308 |
7901
35144 |
5-3/8
136.5 |
4-1/8
104.8 |
1-9/16
39.7 |
9/16
14.3 |
2-3/64
52.0 |
1-15/16
49.2 |
3/4
19.1 |
2-19/64
58.3 |
4-21/64
109.9 |
3-7/8
98.4 |
9/16 |
6.0
2.72 |
|
|
1-11/16
1-3/4 |
45 |
MSF-27
MSF-28
MSF-309 |
3-111
3-112
5309 |
7889
35090 |
5-5/8
142.9 |
4-3/8
111.1 |
1-9/16
39.7 |
9/16
14.3 |
2-5/32
54.8 |
2-1/32
51.6 |
3/4
19.1 |
2-15/32
62.7 |
4-33/64
114.7 |
4
101.6 |
9/16 |
6.8
3.08 |
|
|
1-15/16
2 |
50 |
MSF-31
MSF-32
MSF-310 |
3-115
2-2
5310 |
9752
43377 |
6-3/8
161.9 |
5-1/8
130.2 |
1-3/4
44.5 |
13/16
20.6 |
2-5/16
58.7 |
2-3/16
55.6 |
7/8
22.2 |
2-23/32
69.1 |
5-3/16
131.8 |
4-1/4
108.0 |
5/8 |
10.5
4.76 |
|
|
2-3/16
2-1/4 |
55 |
MSF-35
MSF-36
MSF-311 |
3-23
2-24
5311 |
11789
52437 |
6-7/8
174.6 |
5-5/8
142.9 |
1-15/16
49.2 |
13/16
20.6 |
2-11/16
68.3 |
2-9/16
65.1 |
1
25.4 |
2-63/64
75.8 |
5-7/16
138.1 |
5
127.0 |
5/8 |
12.1
5.49 |
|
|
2-7/16
2-1/2 |
65 |
MSF-39
MSF-40
MSF-313 |
3-27
3-28
5313 |
13971
62143 |
7-3/8
187.3 |
5-7/8
149.2 |
2-5/16
58.7 |
11/16
17.5 |
3
76.2 |
2-3/4
69.9 |
1-1/16
27.0 |
3-7/16
87.3 |
6-1/8
155.6 |
5-10/77
130.3 |
5/8 |
16.4
7.44 |
|
|
2-11/16 |
70 |
MSF-43
MSF-314 |
3-211
5314 |
14839
66004 |
7-3/4
196.9 |
6
152.4 |
2-3/8
60.3 |
1
25.4 |
3-3/16
81.0 |
3-1/16
77.8 |
1-5/16
33.3 |
3-41/64
92.5 |
6-1/2
165.1 |
5-22/25
149.4 |
3/4 |
20.6
9.34 |
|
|
2-15/16
3 |
75 |
MSF-47
MSF-48
MSF-315 |
3-215
3-3
5315 |
17412
77449 |
7-3/4
196.9 |
6
152.4 |
2-11/16
68.3 |
7/8
22.2 |
3-1/2
88.9 |
3-1/4
82.6 |
1-5/16
33.3 |
3-59/64
99.6 |
6-3/4
171.5 |
5-14/25
141.2 |
3/4 |
21.4
9.71 |
|
|
3-3/16
3-1/4 |
80 |
MSF-51
MSF-52
MSF-316 |
3-33
2-34
5316 |
18681
83093 |
8-7/16
214.3 |
6-3/4
171.5 |
2-3/4
69.9 |
1
25.4 |
3-17/32
89.7 |
3-3/8
85.7 |
1-11/32
34.1 |
4-5/32
105.6 |
7-1/4
184.2 |
6
152.4 |
3/4 |
26.7
12.11 |
|
|
3-7/16
3-1/2 |
|
MSF-55
MSF-56 |
3-37
3-38 |
21566
95926 |
8-7/16
214.3 |
6-3/4
171.5 |
3
76.2 |
1
25.4 |
3-31/32
100.8 |
3-25/32
96.0 |
1-9/16
39.7 |
4-25/64
111.5 |
7-3/4
196.9 |
6-22/71
160.3 |
7/8 |
30.0
13.61 |
|
|
3-15/16
4 |
100 |
MSF-63
MSF-64
MSF-320 |
3-315
3-4
5320 |
29905
133017 |
10-9/16
268.3 |
8-5/16
211.1 |
3-13/16
96.8 |
1-1/4
31.8 |
5
127.0 |
4-5/8
117.5 |
1-15/16
49.2 |
5-11/64
131.4 |
9-1/4
235.0 |
7-11/25
189.0 |
1 |
55.1
24.99 |
|
|
4-7/16
4-15/16 |
|
MSFD-71
MSFD-79 |
3-47D
3-415D |
37482
166720 |
12-3/4
323.9 |
10
254.0 |
4-3/4
120.7 |
1-9/16
39.7 |
6
152.4 |
5-3/4
146.1 |
2-7/8
73.0 |
6-11/32
161.1 |
11-1/2
292.1 |
9-1/2
241.3 |
1-1/4
32 |
115.0
52.16 |
| |
