| 四螺栓法兰SF-12T、SF-15T、SF-19T、SF-22T、SF-23T |
|
上海川代轴承机械有限公司 新闻动态 2025-6-1
|
|
|
|
|

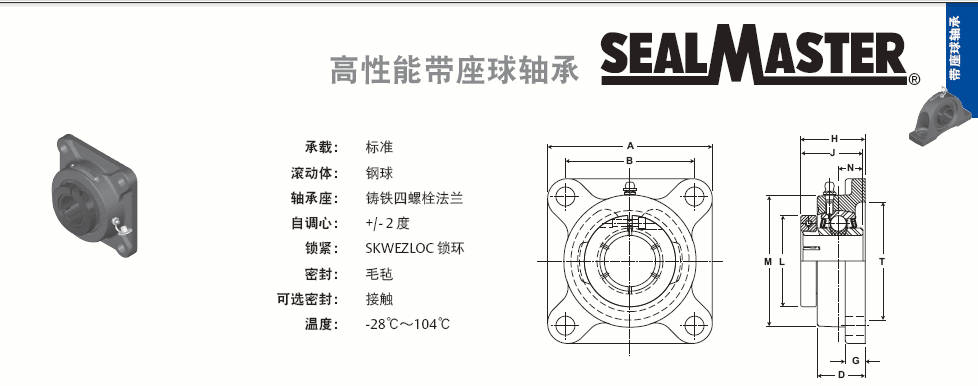

SF-T 系列标准型四螺栓法兰 － SKWEZLOC 锁环 － 英制
|
|
|
孔径 |
型号 |
轴承芯件
-编号 |
基本动态
额定载荷
磅/牛 |
尺寸（英寸/毫米） |
螺栓-
尺寸 |
单元
重量
磅/公斤 |
|
|
A |
B* |
D |
G |
H |
J |
L |
M |
N |
T-芯 |
|
|
英寸 |
|
|
3/4 |
SF-12T |
2-012T |
2611
11614 |
3-3/8
85.7 |
2-1/2
63.5 |
59/64
23.4 |
7/16
11.1 |
1-11/32
34.1 |
1-9/32
32.5 |
1-3/4
44.5 |
2-11/32
59.5 |
1/2
12.7 |
2
50.8 |
3/8 |
1.6
.73 |
|
|
15/16
1 |
SF-15T
SF-16T |
2-015T
2-1T |
2801
12459 |
3-3/4
95.3 |
2-3/4
69.9 |
1-1/32
26.2 |
17/32
13.5 |
1-1/2
38.1 |
1-7/16
36.5 |
1-15/16
49.2 |
2-23/32
69.1 |
9/16
14.3 |
2-3/8
60.3 |
7/16 |
2.3
1.04 |
|
|
1-1/8
1-3/16
1-1/4 |
SF-18T
SF-19T
SF-20RT |
2-12T
2-13T
1-14T |
4381
19487 |
4-1/4
108.0 |
3-1/4
82.6 |
1-11/64
29.8 |
17/32
13.5 |
1-5/8
41.3 |
1-9/16
39.7 |
2-3/16
55.6 |
3-7/32
81.8 |
5/8
15.9 |
2-7/8
73.0 |
7/16 |
3.8
1.72 |
|
|
1-1/4 |
SF-20T |
2-14T |
5782
25718 |
4-5/8
117.5 |
3-5/8
92.1 |
1-11/32
34.1 |
9/16
14.3 |
1-13/16
46.0 |
1-3/4
44.5 |
2-7/16
61.9 |
3-23/32
94.5 |
11/16
17.5 |
3-5/16
84.1 |
7/16 |
4.4
2.00 |
|
|
1-3/8
1-7/16 |
SF-22T
SF-23T |
2-16T
2-17T |
5782
25718 |
4-5/8
117.5 |
3-5/8
92.1 |
1-11/32
34.1 |
9/16
14.3 |
1-13/16
46.0 |
1-3/4
44.5 |
2-9/16
65.1 |
3-23/32
94.5 |
11/16
17.5 |
3-1/2
88.9 |
1/2 |
4.4
2.00 |
|
|
1-1/2 |
SF-24T |
2-18T |
7340
32648 |
5-1/8
130.2 |
4
101.6 |
1-1/2
38.1 |
9/16
14.3 |
2-5/64
52.8 |
2
50.8 |
2-11/16
68.3 |
4-1/8
104.8 |
3/4
19.1 |
3-7/8
98.4 |
1/2 |
5.8
2.63 |
|
|
1-5/8 |
SF-26T |
2-110T |
7901
35144 |
5-3/8
136.5 |
4-1/8
104.8 |
1-9/16
39.7 |
9/16
14.3 |
2-7/64
53.6 |
2
50.8 |
2-13/16
71.4 |
4-21/64
109.9 |
3/4
19.1 |
3-7/8
98.4 |
9/16 |
6.0
2.72 |
|
|
1-11/16
1-3/4 |
SF-27T
SF-28T |
2-111T
2-112T |
7901
35144 |
5-3/8
136.5 |
4-1/8
104.8 |
1-9/16
39.7 |
9/16
14.3 |
2-7/64
53.6 |
2
50.8 |
2-15/16
74.6 |
4-21/64
109.9 |
3/4
19.1 |
3-7/8
98.4 |
9/16 |
6.0
2.72 |
|
|
1-15/16
2 |
SF-31T
SF-32RT |
2-115T
1-2T |
7889
35090 |
5-5/8
142.9 |
4-3/8
111.1 |
1-9/16
39.7 |
9/16
14.3 |
2-7/32
56.4 |
2-3/32
53.2 |
3-3/8
85.7 |
4-33/64
114.7 |
3/4
19.1 |
4
101.6 |
9/16 |
7.0
3.18 |
|
|
2 |
SF-32T |
2-2T |
9752
43377 |
6-3/8
161.9 |
5-1/8
130.2 |
1-3/4
44.5 |
13/16
20.6 |
2-3/8
60.3 |
2-1/4
57.2 |
3-1/2
88.9 |
5-3/16
131.8 |
7/8
22.2 |
4-1/4
108.0 |
9/16 |
11.1
5.03 |
|
|
2-1/8
2-3/16 |
SF-34T
SF-35T |
2-22T
2-23T |
9752
43377 |
6-3/8
161.9 |
5-1/8
130.2 |
1-3/4
44.5 |
13/16
20.6 |
2-3/8
60.3 |
2-1/4
57.2 |
3-5/8
92.1 |
5-3/16
131.8 |
7/8
22.2 |
4-1/4
108.0 |
5/8 |
11.1
5.03 |
|
|
2-1/4 |
SF-36T |
2-24T |
11789
52437 |
6-7/8
174.6 |
5-5/8
142.9 |
1-15/16
49.2 |
13/16
20.6 |
2-3/4
69.9 |
4-1/16
103.2 |
4-1/16
103.2 |
5-7/16
138.1 |
1
25.4 |
5
127.0 |
5/8 |
13.0
5.90 |
|
|
2-3/8
2-7/16 |
SF-38T
SF-39T |
2-26T
2-27T |
11789
52437 |
6-7/8
174.6 |
5-5/8
142.9 |
1-15/16
49.2 |
13/16
20.6 |
2-3/4
69.9 |
4-1/8
104.8 |
4-1/8
104.8 |
5-7/16
138.1 |
1
25.4 |
5
127.0 |
5/8 |
13.0
5.90 |
| |
