| 四螺栓法兰单元SF-8、SF-11、SF-204、SF-13、SF-16 |
|
上海川代轴承机械有限公司 新闻动态 2026-4-20
|
|
|
|
|

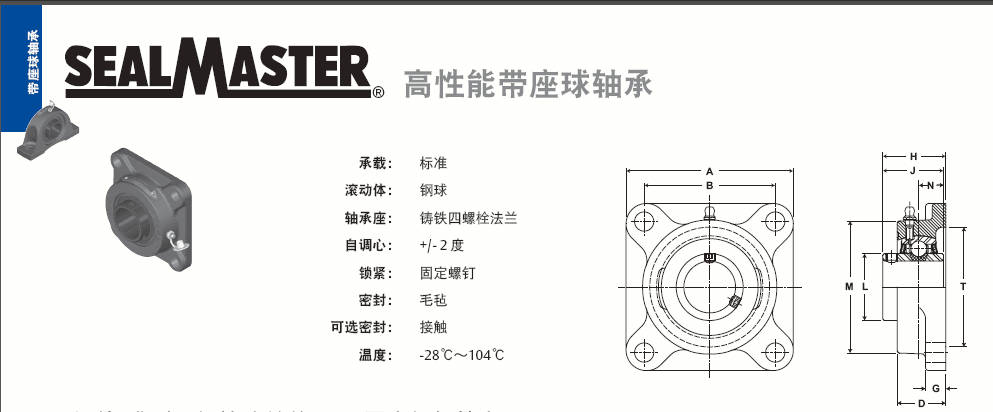

SF 系列标准型四螺栓法兰单元 － 固定螺钉锁定
|
|
|
孔径 |
型号 |
轴承芯件-编号 |
基本动态
-额定载荷
-磅/牛 |
尺寸（英寸/毫米） |
螺栓
-尺寸 |
单元-
重量-
磅/公斤 |
|
|
A |
B* |
D |
G |
H |
J |
N |
L |
M |
T-芯 |
|
|
英寸 |
毫米 |
|
|
1/2
9/16
5/8
11/16 |
|
SF-8
SF-9
SF-10
SF-11 |
2-08
2-09
2-010
2-011 |
2611
11614 |
3
76.2 |
2-1/8
54.0 |
59/64
23.4 |
7/16
11.1 |
1-9/32
32.5 |
1-7/32
31.0 |
1/2
12.7 |
1-3/16
30.2 |
2-17/64
57.5 |
2
50.8 |
3/8 |
1.4
.64 |
|
|
3/4 |
20 |
SF-12
SF-204 |
2-012
5204 |
2611
11614 |
3-3/8
85.7 |
2-1/2
63.5 |
59/64
23.4 |
7/16
11.1 |
1-9/32
32.5 |
1-7/32
31.0 |
1/2
12.7 |
1-3/16
30.2 |
2-11/32
59.5 |
2
50.8 |
3/8 |
1.5
.68 |
|
|
13/16
7/8
15/16
1 |
25 |
SF-13
SF-14
SF-15
SF-16
SF-205 |
2-013
2-014
2-015
2-1
5205 |
2801
12459 |
3-3/4
95.3 |
2-3/4
69.9 |
1-1/32
26.2 |
17/32
13.5 |
1-7/16
36.5 |
1-3/8
34.9 |
9/16
14.3 |
1-3/8
34.9 |
2-23/32
69.1 |
2-3/8
60.3 |
7/16 |
2.1
.95 |
|
|
1-1/16
1-1/8
1-3/16
1-1/4 |
30 |
SF-17
SF-18
SF-19
SF-20R
SF-206 |
2-11
2-12
2-13
1-14
5206 |
4381
19487 |
4-1/4
108.0 |
3-1/4
82.6 |
1-11/64
29.8 |
17/32
13.5 |
1-9/16
39.7 |
1-1/2
38.1 |
5/8
15.9 |
1-19/32
40.5 |
3-7/32
81.8 |
2-7/8
73.0 |
7/16 |
3.6
1.63 |
|
|
1-1/4
1-5/16
1-3/8
1-7/16 |
35 |
SF-20
SF-21
SF-22
SF-23
SF-207 |
2-14
2-15
2-16
2-17
5207 |
5782
25718 |
4-5/8
117.5 |
3-5/8
92.1 |
1-11/32
34.1 |
9/16
14.3 |
1-3/4
44.5 |
1-11/16
42.9 |
11/16
17.5 |
1-55/64
47.2 |
3-23/32
94.5 |
3-5/16
84.1 |
1/2 |
4.1
1.86 |
|
|
1-1/2
1-9/16 |
40 |
SF-24
SF-25
SF-208 |
2-18
2-19
5208 |
7340
32648 |
5-1/8
130.2 |
4
101.6 |
1-1/2
38.1 |
9/16
14.3 |
2-1/64
51.2 |
1-15/16
49.2 |
3/4
19.1 |
2-1/16
52.4 |
4-5/64
103.6 |
3-1/2
88.9 |
1/2 |
5.5
2.49 |
|
|
1-5/8
1-11/16
1-3/4 |
45 |
SF-26
SF-27
SF-28
SF-209 |
2-110
2-111
2-112
5209 |
7901
35144 |
5-3/8
136.5 |
4-1/8
104.8 |
1-9/16
39.7 |
9/16
14.3 |
2-3/64
52.0 |
1-15/16
49.2 |
3/4
19.1 |
2-19/64
58.3 |
4-21/64
109.9 |
3-7/8
98.4 |
9/16 |
5.7
2.59 |
|
|
1-13/16
1-7/8
1-15/16
2 |
50 |
SF-29
SF-30
SF-31
SF-32R
SF-210 |
2-113
2-114
2-115
1-2
5210 |
7889
35090 |
5-5/8
142.9 |
4-3/8
111.1 |
1-9/16
39.7 |
9/16
14.3 |
2-5/32
54.8 |
2-1/32
51.6 |
3/4
19.1 |
2-15/32
62.7 |
4-33/64
114.7 |
4
101.6 |
9/16 |
6.4
2.90 |
|
|
2
2-1/8
2-3/16 |
55 |
SF-32
SF-34
SF-35
SF-211 |
2-2
2-22
2-23
5211 |
9752
43377 |
6-3/8
161.9 |
5-1/8
130.2 |
1-3/4
44.5 |
13/16
20.6 |
2-5/16
58.7 |
2-3/16
55.6 |
7/8
22.2 |
2-23/32
69.1 |
5-3/16
131.8 |
4-1/4
108.0 |
5/8 |
10.5
4.76 |
|
|
2-1/4
2-3/8
2-7/16 |
60 |
SF-36
SF-38
SF-39
SF-212 |
2-24
2-26
2-27
5212 |
11789
52437 |
6-7/8
174.6 |
5-5/8
142.9 |
1-15/16
49.2 |
13/16
20.6 |
2-11/16
68.3 |
2-9/16
65.1 |
1
25.4 |
2-63/64
75.8 |
5-7/16
138.1 |
5
127.0 |
5/8 |
11.8
5.35 |
|
|
2-1/2
2-11/16 |
70 |
SF-40
SF-43
SF-214 |
3-28
2-211
5214 |
13971
62143 |
7-3/8
187.3 |
5-7/8
149.2 |
2-5/16
58.7 |
11/16
17.5 |
3
76.2 |
2-3/4
69.9 |
1-1/16
27.0 |
3-7/16
87.3 |
6-1/8
155.6 |
5-1/8
130.2 |
5/8 |
16.4
7.44 |
|
|
2-7/8
2-15/16 |
75 |
SF-46
SF-47
SF-215 |
2-214
2-215
5215 |
14839
66004 |
7-3/4
196.9 |
6
152.4 |
2-3/8
60.3 |
1
25.4 |
3-3/16
81.0 |
3-1/16
77.8 |
1-5/16
33.3 |
3-41/64
92.5 |
6-1/2
165.1 |
5-7/8
149.2 |
3/4 |
19.4
8.80 |
| |
四螺栓法兰单元SF-8、SF-11、SF-204、SF-13、SF-16现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
