| 采用双锁紧MPD-23、MPD-24、MPD-27、MPD-35、MPD-39 |
|
上海川代轴承机械有限公司 新闻动态 2025-9-1
|
|
|
|

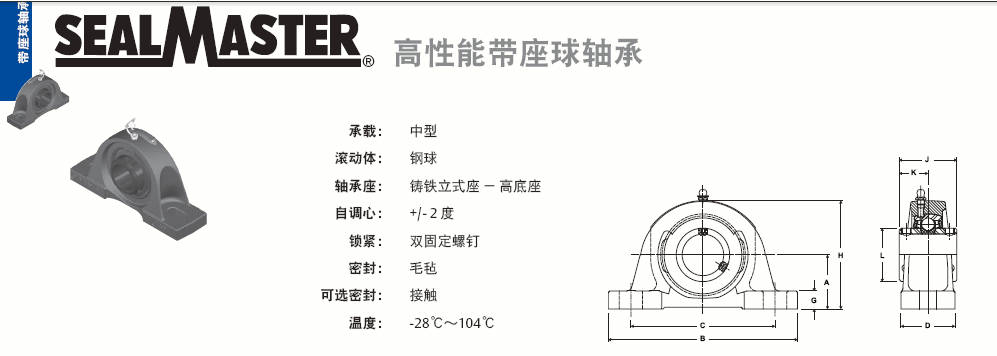

采用双锁紧 － 固定螺钉锁紧的 MPD 系列中载荷立式座 |
|
孔径 |
型号 |
轴承芯件
-编号 |
基本动态
额定载荷-
磅/牛 |
尺寸（英寸/毫米） |
螺栓
尺寸 |
单元-
重量-
磅/公斤 |
|
A |
B |
C |
D |
G |
H |
J |
K |
L |
|
英寸 |
最小 |
最大 |
|
1 |
MPD-16 |
3-1D |
4381
19487 |
1-3/4
44.5 |
6-1/4
158.8 |
4-3/16
106.4 |
5-3/16
131.8 |
2
50.8 |
5/8
15.9 |
3-7/16
87.3 |
1-3/4
44.5 |
7/8
22.2 |
1-19/32
40.5 |
1/2 |
4.0
1.81 |
|
1-3/16
1-1/4 |
MPD-19
MPD-20 |
3-13D
2-14D |
5782
25718 |
1-7/8
47.6 |
6-7/8
174.6 |
4-1/2
114.3 |
5-1/2
139.7 |
2-1/4
57.2 |
11/16
17.5 |
3-13/16
96.8 |
2
50.8 |
1
25.4 |
1-55/64
47.2 |
1/2 |
5.4
2.45 |
|
1-7/16 |
MPD-23 |
3-17D |
7340
32648 |
2-1/8
54.0 |
8
203.2 |
5
127.0 |
6-3/8
161.9 |
2-1/4
57.2 |
3/4
19.1 |
4-3/16
106.4 |
2-5/16
58.7 |
1-5/32
29.4 |
2-1/16
52.4 |
1/2 |
6.8
3.08 |
|
1-1/2 |
MPD-24 |
3-18D |
7901
35144 |
2-5/16
58.7 |
8-3/4
222.3 |
5-1/2
139.7 |
6-3/4
171.5 |
2-5/8
66.7 |
13/16
20.6 |
4-9/16
115.9 |
2-3/8
60.3 |
1-3/16
30.2 |
2-19/64
58.3 |
5/8 |
9.0
4.08 |
|
1-11/16
1-3/4 |
MPD-27
MPD-28 |
3-111D
3-112D |
7889
35090 |
2-5/16
58.7 |
8-3/4
222.3 |
5-7/16
138.1 |
6-13/16
173.0 |
2-5/8
66.7 |
13/16
20.6 |
4-5/8
117.5 |
2-1/2
63.5 |
1-1/4
31.8 |
2-15/32
62.7 |
5/8 |
9.5
4.31 |
|
1-15/16
2 |
MPD-31
MPD-32 |
3-115D
2-2D |
9752
43377 |
2-1/2
63.5 |
9-1/2
241.3 |
5-15/16
150.8 |
7-9/16
192.1 |
2-7/8
73.0 |
7/8
22.2 |
5-3/32
129.4 |
2-5/8
66.7 |
1-5/16
33.3 |
2-23/32
69.1 |
5/8 |
11.7
5.31 |
|
2-3/16
2-1/4 |
MPD-35
MPD-36 |
3-23D
2-24D |
11789
52437 |
2-3/4
69.9 |
10-1/4
260.4 |
6-9/16
166.7 |
7-15/16
201.6 |
3-1/8
79.4 |
1-1/16
27.0 |
5-5/8
142.9 |
3-1/8
79.4 |
1-9/16
39.7 |
2-63/64
75.8 |
3/4 |
16.2
7.35 |
|
2-7/16
2-1/2 |
MPD-39
MPD-40 |
3-27D
3-28D |
13971
62143 |
3
76.2 |
11-1/4
285.8 |
7-1/8
181.0 |
8-7/8
225.4 |
3-1/4
82.6 |
1-1/16
27.0 |
6-1/4
158.8 |
3-1/2
88.9 |
1-3/4
44.5 |
3-7/16
87.3 |
3/4 |
21.5
9.75 |
|
2-11/16 |
MPD-43 |
3-211D |
14839
66004 |
3-1/2
88.9 |
13
330.2 |
7-7/8
200.0 |
10-1/8
257.2 |
3-1/2
88.9 |
1-1/8
28.6 |
7
177.8 |
3-1/2
88.9 |
1-3/4
44.5 |
3-41/64
92.5 |
7/8 |
29.2
13.24 |
|
2-15/16
3 |
MPD-47
MPD-48 |
3-215D
3-3D |
17412
77449 |
3-1/2
88.9 |
13
330.2 |
7-7/8
200.0 |
10-1/8
257.2 |
3-1/2
88.9 |
1-1/4
31.8 |
7-1/4
184.2 |
3-7/8
98.4 |
1-15/16
49.2 |
3-59/64
99.6 |
7/8 |
31.5
14.29 |
|
3-3/16
3-1/4 |
MPD-51
MPD-52 |
3-33D
2-34D |
18681
83093 |
4
101.6 |
15
381.0 |
9-11/16
246.1 |
12-9/16
319.1 |
4
101.6 |
1-1/4
31.8 |
8
203.2 |
4-1/16
103.2 |
2-1/32
51.6 |
4-5/32
105.6 |
7/8 |
44.1
20.00 |
|
3-7/16
3-1/2 |
MPD-55
MPD-56 |
3-37D
2-38D |
21566
95926 |
4
101.6 |
15
381.0 |
9-5/8
244.5 |
12-5/8
320.7 |
4-3/8
111.1 |
1-5/16
33.3 |
8-1/4
209.6 |
4-7/16
112.7 |
2-7/32
56.4 |
4-25/64
111.5 |
7/8 |
47.8
21.68 |
|
3-15/16
4 |
MPD-63
MPD-64 |
3-315D
3-4D |
29905
133017 |
5
127.0 |
17
431.8 |
11-3/4
298.5 |
14-3/4
374.7 |
4-3/4
120.7 |
1-5/16
33.3 |
10
254.0 |
5-3/8
136.5 |
2-11/16
68.3 |
5-11/64
131.4 |
1 |
73.2
33.20 | |
采用双锁紧MPD-23、MPD-24、MPD-27、MPD-35、MPD-39现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
CF12-1BRM,
RNAST8R,
6215-2Z,
6319 M/P64,
RNA 4928,
SYKC 40 NTH,
LR5201X2Z,
2MMV205WICRDUL,
LM304564UU,
101SSTX1K5 G-78 P2S 17329,
1910HDL G-46 P2P 17845,
RNA4905ARS,
2MM9110WIDUH,
SEA130/NS7BI0DDL,
104177 F4B-SD-303,
22312EXK,
6000CM,
BB35,
23034E1AK.M.C3,
2LA-BNS915CLLB,
JYRP2200,
6034,
RSR12M1WN,
CFE-1-S,
205SFF-HYB#1,
5206CF1,
ER28K轴径1.75(in),
B-1916,
B71924-E-T-P4S-DUL#E,
Pr-2HT054-RS,
以上为我司部分轴承型号，如需查找其他型号，可登陆我们的现货中心栏目或致电021-52797858转8008进行详细查询，谢谢！
，我们还提供其相关技术信息包括
圆弧槽导轨滚轮-LFR系列 LFR 50/4 NPP LFR 50/5-4 NPP LFR 50/8 KDD LFR 50/8-8 KDD,
NB日本直线轴承SM12G、SM13、SM13G、SM16、SM16G、SM20、SM20G、SM25、SM25G,
Thomson在60年前发明了直线滚珠衬套轴承。SSUFB16,SSUFB20-ABB,SSUFB24,SSUPB10,SSUPB12,SSUPB16,
R900948873 PVV51-1X/139-046LB15UUMC R900948168 PVV21-1X/045-027RA15DDMB,
MR7318EX ZT65115 M1028UV,
ZD-2107、ZD-2108、ZD-2111、ZD-2115、ZD-2203,
MUCF202V,Y、MUCF204V,Y、MUCF206V,Y食品轴承,
采用双锁紧MPD-23、MPD-24、MPD-27、MPD-35、MPD-39,
ZAS510772、ZAS511172、ZAS5050MM72,
ZBS2303、ZBS2311、ZBS2400四孔座,
EFRB22439H、EFRB224B36H、EFRB22443H,
KLFBSS2M25、KLFBSS2M30、KLFBSS222,
MW-20T、MW-24T、MW-32T关节轴承,
AIB-4、SIB-6、AIB-8、MIB-8关节轴承,
INS-IP-103R、INS-IP-107R座心,
我们能针对客户的需求提供各种技术服务，具体详细信息请联系川代轴承全国客服热线021-52797858转8008询价，我们将为您提供专业详细的服务。如需查找其他型号，可登陆我们的现货中心栏目或致电021-52797858转8008询价进行详细查询，谢谢！ |
