| CYRD-1-3/8 CCYRD-1-3/8、CYRD-1-3/4、CCYRD-1-3/4 |
|
上海川代轴承机械有限公司 新闻动态 2024-9-17
|
|
|

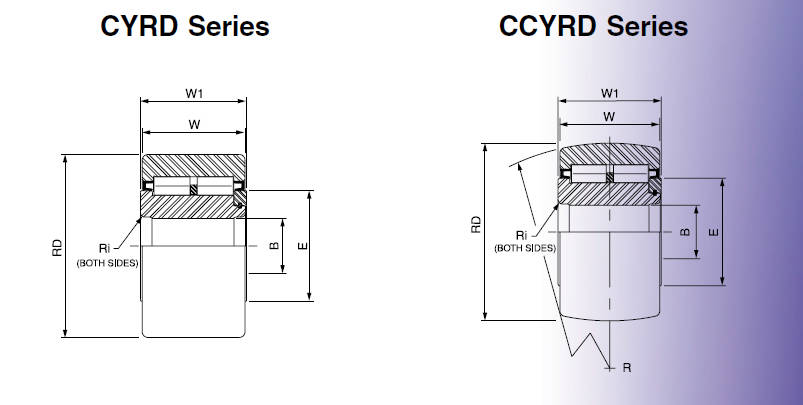

Bearing-Number |
Roller
Diameter
RD
+.000
-.001 |
Roller
Width-W
+.000
-.005 |
Bore
Diameter
B
+.0002
-.0004 |
Overall
Width-W1
+.005
-.010 |
Endplate
OD
E |
Crown
Radius-R
(CCYRD) |
Bore
Corner
Ri**-Min |
Recommended-Shaft-Diameter |
ISO/ABMA
Load-Rating* |
Track-Roller
Load-Rating
Dynamic-Lbs. |
|
Push-Fit
+/-.0002 |
Drive-Fit
+/-.0002 |
Press-Fit
+/-.0002 |
Dynamic
Lbs. |
Static
Lbs. |
|
CYRD-1-1/4 |
CCYRD-1-1/4 |
1.250 |
.750 |
.3750 |
.8125 |
45/64 |
14 |
.030 |
.3745 |
.3751 |
.3753 |
4000 |
4260 |
3300 |
|
CYRD-1-3/8 |
CCYRD-1-3/8 |
1.375 |
.750 |
.3750 |
.8125 |
45/64 |
14 |
.030 |
.3745 |
.3751 |
.3753 |
4000 |
4260 |
3600 |
|
CYRD-1-1/2 |
CCYRD-1-1/2 |
1.500 |
.875 |
.4375 |
.9375 |
55/64 |
20 |
.040 |
.4370 |
.4376 |
.4378 |
6150 |
6910 |
5000 |
|
CYRD-1-5/8 |
CCYRD-1-5/8 |
1.625 |
.875 |
.4375 |
.9375 |
55/64 |
20 |
.040 |
.4370 |
.4376 |
.4378 |
6150 |
6910 |
5400 |
|
CYRD-1-3/4 |
CCYRD-1-3/4 |
1.750 |
1.000 |
.5000 |
1.0625 |
15/16 |
20 |
.050 |
.4995 |
.5001 |
.5005 |
7900 |
9190 |
6650 |
|
CYRD-1-7/8 |
CCYRD-1-7/8 |
1.875 |
1.000 |
.5000 |
1.0625 |
15/16 |
20 |
.050 |
.4995 |
.5001 |
.5005 |
7900 |
9190 |
7100 |
|
CYRD-2 |
CCYRD-2 |
2.000 |
1.250 |
.6250 |
1.3125 |
1-5/32 |
24 |
.060 |
.6245 |
.6251 |
.6255 |
12100 |
14600 |
9500 |
|
CYRD-2-1/4 |
CCYRD-2-1/4 |
2.250 |
1.250 |
.6250 |
1.3125 |
1-5/32 |
24 |
.060 |
.6245 |
.6251 |
.6255 |
12100 |
14600 |
10500 |
|
CYRD-2-1/2 |
CCYRD-2-1/2 |
2.500 |
1.500 |
.7500 |
1.5625 |
1-5/16 |
30 |
.070 |
.7495 |
.7501 |
.7505 |
16600 |
22600 |
14000 |
|
CYRD-2-3/4 |
CCYRD-2-3/4 |
2.750 |
1.500 |
.7500 |
1.5625 |
1-5/16 |
30 |
.070 |
.7495 |
.7501 |
.7505 |
16600 |
22600 |
15000 |
|
CYRD-3 |
CCYRD-3 |
3.000 |
1.750 |
1.0000 |
1.8125 |
1-27/32 |
30 |
.080 |
.9994 |
1.0002 |
1.0006 |
25100 |
36500 |
18300 |
|
CYRD-3-1/4 |
CCYRD-3-1/4 |
3.250 |
1.750 |
1.0000 |
1.8125 |
1-27/32 |
30 |
.080 |
.9994 |
1.0002 |
1.0006 |
25100 |
36500 |
20300 |
|
CYRD-3-1/2 |
CCYRD-3-1/2 |
3.500 |
2.000 |
1.1250 |
2.0625 |
2-3/16 |
30 |
.09 |
1.1244 |
1.1252 |
1.1256 |
34200 |
52500 |
23700 |
|
CYRD-4 |
CCYRD-4 |
4.000 |
2.250 |
1.2500 |
2.3125 |
2-27/64 |
30 |
.100 |
1.2494 |
1.2502 |
1.2506 |
44100 |
67900 |
32500 |
|
CYRD-5 |
CCYRD-5 |
5.000 |
2.750 |
1.7500 |
2.8750 |
2-61/64 |
48 |
.110 |
1.7494 |
1.7502 |
1.7506 |
67800 |
109500 |
50500 |
|
CYRD-6 |
CCYRD-6 |
6.000 |
3.250 |
2.2500 |
3.3750 |
3-11/16 |
56 |
.120 |
2.2494 |
2.2502 |
2.2506 |
101900 |
169900 |
71500 | |
CYRD-1-3/8 CCYRD-1-3/8、CYRD-1-3/4、CCYRD-1-3/4现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
G28X35X4A,
ER19,
L623149-90037,
45BG07S5G-2DST2FCS,
BNF5008_75,
DL610,
PST1.7/16CR,
ZBR9311Y,
TKP0450W78R75-UMW,
SEA105/NS7CE0UL,
129902 AN-GT-03-008,
069402 P2B-IP-104R,
063359 SP4B-AS-21145,
E32018J,
SM5,
SI16x40x10,
DW4KX,
614117,
CR 43751,
624ZZ1MC3E,
PSU215N,
NUTR305/3AS,
K120×127×24,
RNA69/22R,
WS81112,
U-1210-B,
123-010,
108KSZZ-HYB#1,
01B110MEX,
SUCFB210,
以上为我司部分轴承型号，如需查找其他型号，可登陆我们的现货中心栏目或致电021-52797858转8008进行详细查询，谢谢！
