| WP3S2M20E、WP3S214E、WP3S216E、WP3S218E、WP3S220E、WP3S2M35E |
|
上海川代轴承机械有限公司 新闻动态 2025-8-23
|
|
|

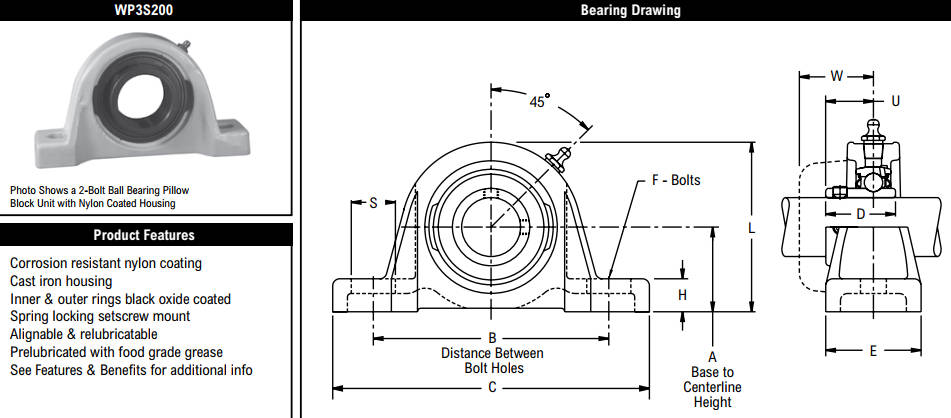

Shaft
Diameter |
Part
Number |
A
Base to
Centerline
Height |
B
Distance
Between
Bolt Holes |
C |
D |
E |
F |
H |
L |
S |
U |
W |
Approx.
Weight |
|
3/4 |
WP3S212E |
15/16 |
37/8 |
51/8 |
11/8 |
11/2 |
3/8 |
1/2 |
219/32 |
11/16 |
3/4 |
119/64 |
1.60 |
|
20.00 |
WP3S2M20E |
33.34 |
98.40 |
130.20 |
28.58 |
38.10 |
10.00 |
12.70 |
65.90 |
17.50 |
19.00 |
32.90 |
0.72 |
|
7/8 |
WP3S214E |
17/16 |
4 |
53/8 |
111/64 |
15/8 |
3/8 |
9/16 |
27/8 |
11/16 |
13/16 |
19/32 |
1.90 |
|
15/16 |
WP3S215E |
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
WP3S216E |
|
|
|
|
|
|
|
|
|
|
|
|
|
25.00 |
WP3S2M25E |
36.51 |
101.60 |
136.50 |
30.17 |
41.30 |
10.00 |
14.30 |
73.00 |
17.50 |
20.60 |
32.50 |
0.86 |
|
11/8 |
WP3S218E |
111/16 |
45/8 |
65/16 |
111/32 |
13/4 |
1/2 |
11/16 |
35/16 |
15/16 |
61/64 |
129/64 |
2.80 |
|
13/16 |
WP3S219E |
|
|
|
|
|
|
|
|
|
|
|
|
|
11/4 |
WP3S2E20E |
|
|
|
|
|
|
|
|
|
|
|
|
|
30.00 |
WP3S2M30E |
42.86 |
117.50 |
160.30 |
34.13 |
44.40 |
12.00 |
17.50 |
84.10 |
23.80 |
24.20 |
36.90 |
1.26 |
|
11/4 |
WP3S220E |
17/8 |
415/16 |
63/8 |
19/16 |
17/8 |
1/2 |
13/16 |
311/16 |
13/16 |
17/64 |
135/64 |
3.50 |
|
13/8 |
WP3S222E |
|
|
|
|
|
|
|
|
|
|
|
|
|
17/16 |
WP3S223E |
|
|
|
|
|
|
|
|
|
|
|
|
|
35.00 |
WP3S2M35E |
47.62 |
125.40 |
161.90 |
39.67 |
47.60 |
12.00 |
20.60 |
93.70 |
20.60 |
28.20 |
39.30 |
1.58 |
|
11/2 |
WP3S224E |
2 |
53/8 |
71/16 |
111/16 |
17/8 |
1/2 |
13/16 |
4 |
15/16 |
113/64 |
141/64 |
4.40 |
|
40.00 |
WP3S2M40E |
50.80 |
136.50 |
179.40 |
42.87 |
47.60 |
12.00 |
20.60 |
101.60 |
23.80 |
30.60 |
41.70 |
1.98 |
|
15/8 |
WP3S226E |
21/8 |
55/8 |
71/4 |
149/64 |
2 |
1/2 |
13/16 |
45/16 |
7/8 |
115/64 |
121/32 |
5.50 |
|
111/16 |
WP3S227E |
|
|
|
|
|
|
|
|
|
|
|
|
|
13/4 |
WP3S228E |
|
|
|
|
|
|
|
|
|
|
|
|
|
115/16 |
WP3S231E |
21/4 |
63/16 |
77/8 |
151/64 |
21/8 |
5/8 |
7/8 |
41/2 |
15/16 |
117/64 |
125/32 |
5.80 | |
WP3S2M20E、WP3S214E、WP3S216E、WP3S218E、WP3S220E、WP3S2M35E现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
