| PKLB6839FR、PKLB68M70FR、PKLB6848FR、PKLB6856FR |
|
上海川代轴承机械有限公司 新闻动态 2024-11-25
|
|
|

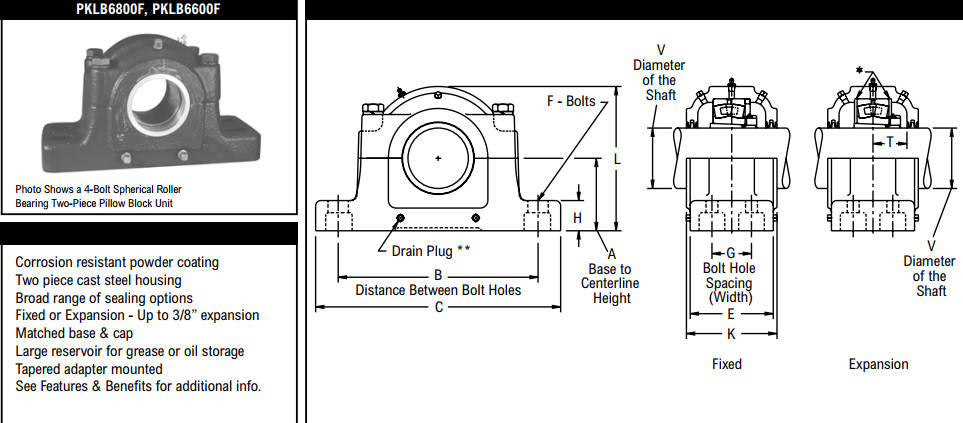

V
Shaft
Diameter |
Part
Number |
A
Base to
Centerline
Height |
B Min.
Distance
Between
Bolt Holes |
B Max.
Distance
Between
Bolt Holes |
G
Bolt Hole
Spacing
(Width) |
C |
E |
F |
H |
K |
L |
P |
T |
Approx.
Weight |
|
27/16 |
PKLB6839FR |
31/4 |
85/8 |
95/8 |
17/8 |
111/4 |
43/8 |
1/2 |
11/2 |
43/4 |
63/8 |
101/4 |
115/32 |
37.00 |
|
65.00 |
PKLB68M65FR |
82.55 |
219.10 |
244.50 |
47.60 |
285.80 |
111.10 |
12.00 |
38.10 |
120.60 |
161.90 |
260.40 |
37.30 |
16.80 |
|
211/16 |
PKLB6843FR |
31/2 |
95/8 |
11 |
2 |
13 |
47/8 |
5/8 |
15/8 |
51/4 |
7 |
11 |
11/2 |
51.00 |
|
70.00 |
PKLB68M70FR |
88.90 |
244.50 |
279.40 |
50.80 |
330.20 |
123.80 |
16.00 |
41.30 |
133.40 |
177.80 |
279.40 |
38.10 |
23.10 |
|
215/16 |
PKLB6847FR |
33/4 |
97/8 |
11 |
2 |
13 |
47/8 |
5/8 |
15/8 |
51/4 |
73/8 |
111/2 |
119/32 |
51.00 |
|
3 |
PKLB6848FR |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
75.00 |
PKLB68M75FR |
95.25 |
250.80 |
279.40 |
50.80 |
330.20 |
123.80 |
16.00 |
41.30 |
133.40 |
187.30 |
292.10 |
40.50 |
23.10 |
|
37/16 |
PKLB6855FR |
41/2 |
115/8 |
131/8 |
23/8 |
151/4 |
6 |
3/4 |
17/8 |
61/2 |
813/16 |
133/4 |
129/32 |
97.00 |
|
31/2 |
PKLB6856FR |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
90.00 |
PKLB68M90FR |
114.30 |
295.30 |
333.40 |
60.30 |
387.40 |
152.40 |
20.00 |
47.60 |
165.10 |
223.80 |
349.20 |
48.40 |
44.00 |
|
311/16 |
PKLB6859FR |
415/16 |
125/8 |
141/2 |
23/4 |
161/2 |
61/2 |
3/4 |
2 |
7 |
93/4 |
151/4 |
21/8 |
112.00 |
|
315/16 |
PKLB6863FR |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4 |
PKLB6864FR |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
100.00 |
PKLB68M100FR |
125.41 |
320.70 |
368.30 |
69.80 |
419.10 |
165.10 |
20.00 |
50.80 |
177.80 |
247.60 |
387.40 |
54.00 |
50.80 |
|
47/16 |
PKLB6871FR |
6 |
145/8 |
16 |
31/4 |
183/8 |
71/4 |
7/8 |
21/4 |
73/4 |
111/2 |
181/4 |
215/32 |
200.00 |
|
41/2 |
PKLB6872FR |
|
|
|
|
|
|
|
|
|
|
|
|
196.00 |
|
115.00 |
PKLB68M115FR |
152.40 |
371.50 |
406.40 |
82.60 |
466.70 |
184.20 |
24.00 |
57.20 |
196.80 |
292.10 |
463.60 |
62.70 |
88.90 |
|
415/16 |
PKLB6879FR |
6 |
16 |
171/8 |
33/8 |
201/8 |
67/8 |
1 |
21/2 |
71/2 |
1115/16 |
191/4 |
25/8 |
207.00 |
|
5 |
PKLB6880FR |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
125.00 |
PKLB68M125FR |
152.40 |
406.40 |
435.00 |
85.70 |
511.20 |
174.60 |
24.00 |
63.50 |
190.50 |
303.20 |
489.00 |
66.70 |
93.90 |
|
57/16 |
PKLB6887FR |
611/16 |
173/8 |
191/4 |
33/4 |
22 |
8 |
1 |
23/4 |
81/2 |
131/2 |
201/2 |
231/32 |
270.00 |
|
140.00 |
PKLB68M140FR |
169.86 |
441.30 |
489.00 |
95.20 |
558.80 |
203.20 |
24.00 |
69.80 |
215.90 |
342.90 |
520.70 |
75.40 |
122.50 |
|
515/16 |
PKLB6895FR |
71/16 |
193/8 |
215/8 |
41/4 |
243/4 |
83/4 |
1 |
3 |
91/4 |
141/4 |
221/4 |
31/8 |
368.00 |
|
6 |
PKLB6896FR |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
150.00 |
PKLB68M150FR |
179.39 |
492.10 |
549.30 |
108.00 |
628.60 |
222.20 |
24.00 |
76.20 |
235.00 |
362.00 |
565.20 |
79.40 |
166.90 |
|
67/16 |
PKLB68103FR |
71/2 |
207/8 |
235/8 |
45/8 |
263/4 |
91/8 |
1 |
31/4 |
95/8 |
1415/16 |
231/4 |
35/32 |
390.00 |
|
61/2 |
PKLB68104FR |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
160.00 |
PKLB68M160FR |
190.50 |
530.20 |
600.10 |
117.50 |
679.40 |
231.80 |
24.00 |
82.60 |
244.50 |
379.40 |
590.60 |
80.20 |
176.90 |
|
615/16 |
PKLB68111FR |
77/8 |
215/8 |
243/8 |
41/2 |
28 |
93/4 |
11/4 |
31/4 |
101/4 |
1513/16 |
25 |
35/16 |
470.00 |
|
7 |
PKLB68112FR |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
170.00 |
PKLB68M170FR |
200.02 |
549.30 |
619.10 |
114.30 |
711.20 |
247.60 |
30.00 |
82.60 |
260.40 |
401.60 |
635.00 |
84.10 |
213.20 |
|
71/2 |
PKLB68120FR |
91/2 |
257/8 |
275/8 |
71/4 |
32 |
12 |
13/4 |
4 |
125/8 |
1811/16 |
291/4 |
313/16 |
875.00 |
|
715/16 |
PKLB68127FR |
|
|
|
|
|
|
|
|
|
|
|
|
830.00 |
|
8 |
PKLB68128FR |
|
|
|
|
|
|
|
|
|
|
|
|
830.00 | |
