| 200 SERIES CAM CLUTCH
MODELS B203 TO B214
Shaft-Mounted Type
Model
Shaft Outer
Race
Max.
Torque
(N·m)
Max.
Indexing
(cycle/min.)
A (+0 to )
–0.06 C ( ) +0 to
–0.025
B
Shaft Dia.
Keyway
Use with JIS
Bearing
Number
Weight
(kg)
Nominal
Overrunning
Drag
(N·m)
Max.
Overrunning
(r/min)
B 203
B 204
B 205
B 206
B 207
B 208
B 209
B 210
B 211
B 212
B 213
B 214
39.2
58.8
98
235
372
549
549
784
784
1,230
1,230
1,390
0.098
0.098
0.196
0.196
0.196
0.196
0.196
0.294
0.294
0.294
0.294
0.392
2,400
2,400
1,800
1,800
1,800
1,800
1,800
1,200
1,200
1,200
1,200
1,000
500
500
400
350
300
200
200
200
200
180
180
180
150
150
150
150
150
150
150
150
150
150
150
150
25.0
25.0
25.0
28.0
28.0
32.0
32.0
32.0
32.0
42.0
42.0
42.0
40
47
52
62
72
80
85
90
100
110
120
125
–0.014
–0.039
–0.014
–0.039
–0.017
–0.042
–0.017
–0.042
–0.017
–0.042
–0.017
–0.042
–0.020
–0.045
–0.020
–0.045
–0.020
–0.050
–0.020
–0.050
–0.020
–0.050
–0.024
–0.060
16.510
18.796
23.622
32.766
42.088
46.761
46.761
56.109
56.109
70.029
70.029
79.356
4 × 2.5
5 × 3
5 × 3
7 × 4
7 × 4
10 × 4.5
10 × 4.5
10 × 4.5
10 × 4.5
10 × 4.5
10 × 4.5
12 × 4.5
0.23
0.34
0.45
0.68
0.80
0.91
0.95
1.00
1.40
1.80
2.30
2.40
6203
6204
6205
6206
6207
6208
6209
6210
6211
6212
6213
6214
Dimensions in mm
Note: Stronger spring type “B---SS” is availabe. when an inner race is needed, order “B---IR”.
Dimensions and Capacities
Installation and Usage
1. 200 Series Cam Clutch is shaft
mounted, so the shaft on which
the clutch is mounted must be
hardened to Rc 56-60 and 1.5 mm
case depth after grinding. Grind to
1.5S (16micro-inch) finish. The
taper of this shaft should not
exceed 0.01 mm per 50mm.
2. For installation of the clutch,
mount the clutch with bearings
at both sides or on one side in
order to obtain concentricity
between the shaft and the clutch
outer race and to take up radial
or thrust loads which may work
on the outer race or the shaft.
See the installation example.
3. The clutch should be mounted
on the shaft by rotating it in the
direction marked by the arrow
shown on the clutch plate. Do
not apply shock to the clutch by
hammering.
4. The clutches have the same
outside diameters as the
bearings shown in the table
above. Bore tolerance of the
housing in which the clutch is
assembled should be within the
range shown in the table below.
5. For indexing, oil lubrication is
recommended.
6. Concentricity of the housing
bore and shaft should be within
0.05 mm.
7. Key profile should be in
accordance with JIS B1301-1959.
Typical installation drawing
• See “information for Selection” on page 73.
• See “Lubrication and Maintenance” on
page 75.
q Inner race
w Cam
e Spring
r Side plate
Model Tolerance of
housing bore (mm)
B 203, B 204
B 205, B 206, B 207, B 208
B 210, B 211, B 212, B 213
B 214
+0 to +0.025
+0 to +0.030
+0 to +0.035
+0 to +0.040 |
近期推荐轴承型号B208,
,
BR90,
BS270R,
TKM0950W114R170-L,
TKM0950W418R140,
TKM1250W295R180,
TK180R400,
TK130-SP65-125-20T,
TKE28-HS36,
TKP0625W108R125,
TKP0350W25R50-U,
以上为我司部分轴承型号，如需查找其他型号，可登陆我们的现货中心栏目或致电021-52797858转8008询价,进行详细查询，谢谢！
|

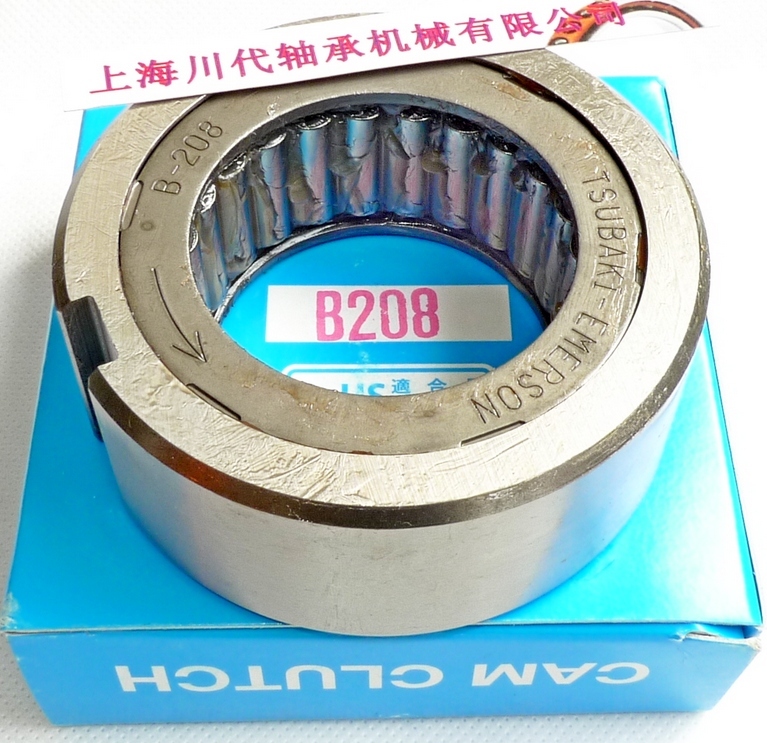

| B208产品详细图片： |
 |
