| 标准载荷立式座NPL-12T、NPL-15T、NPL-16T、NPL-20RT |
|
上海川代轴承机械有限公司 新闻动态 2025-1-8
|
|
|
|

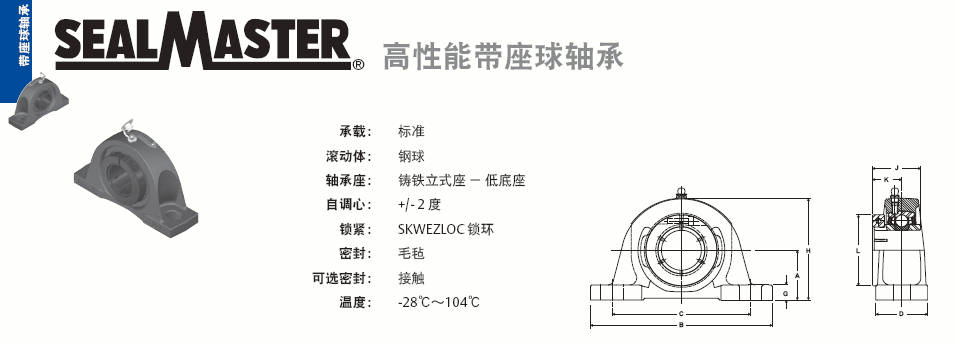

NPL-T 系列标准载荷立式座 － SKWEZLOC 锁环
|
|
孔径 |
型号 |
轴承芯件
编号 |
基本动态
额定载荷-
磅/牛 |
尺寸（英寸/毫米） |
螺栓
-尺寸 |
单元-
重量-
磅/公斤 |
|
A |
B |
C |
D |
G |
H |
J |
K |
L |
|
英寸 |
最小 |
最大 |
|
3/4 |
NPL-12T |
2-012T |
2611
11614 |
1-1/4
31.8 |
5
127.0 |
3-3/8
85.7 |
4-1/8
104.8 |
1-1/2
38.1 |
7/16
11.1 |
2-1/2
63.5 |
1-9/32
32.5 |
25/32
19.8 |
1-3/4
44.5 |
3/8 |
1.8
.82 |
|
15/16
1 |
NPL-15T
NPL-16T |
2-015T
2-1T |
2801
12459 |
1-5/16
33.3 |
5-1/2
139.7 |
3-7/8
98.4 |
4-3/8
111.1 |
1-1/2
38.1 |
1/2
12.7 |
2-11/16
68.3 |
1-7/16
36.5 |
7/8
22.2 |
1-15/16
49.2 |
3/8 |
2.2
1.00 |
|
1-1/8
1-3/16
1-1/4 |
NPL-18T
NPL-19T
NPL-20RT |
2-12T
2-13T
1-14T |
4381
19487 |
1-9/16
39.7 |
6-1/2
165.1 |
4-7/16
112.7 |
5-1/16
128.6 |
1-7/8
47.6 |
7/16
11.1 |
3-1/4
82.6 |
1-9/16
39.7 |
15/16
23.8 |
2-3/16
55.6 |
1/2 |
3.8
1.72 |
|
1-1/4 |
NPL-20T |
2-14T |
5782
25718 |
1-13/16
46.0 |
6-9/16
166.7 |
4-11/16
119.1 |
5-5/16
134.9 |
1-7/8
47.6 |
9/16
14.3 |
3-11/16
93.7 |
1-3/4
44.5 |
1-1/16
27.0 |
2-7/16
61.9 |
1/2 |
4.7
2.13 |
|
1-3/8
1-7/16 |
NPL-22T
NPL-23T |
2-16T
2-17T |
5782
25718 |
1-13/16
46.0 |
6-9/16
166.7 |
4-11/16
119.1 |
5-5/16
134.9 |
1-7/8
47.6 |
9/16
14.3 |
3-11/16
93.7 |
1-3/4
44.5 |
1-1/16
27.0 |
2-9/16
65.1 |
1/2 |
4.7
2.13 |
|
1-1/2 |
NPL-24T |
2-18T |
7340
32648 |
1-15/16
49.2 |
7-1/4
184.2 |
4-7/8
123.8 |
5-7/8
149.2 |
2-1/8
54.0 |
11/16
17.5 |
3-15/16
100.0 |
2
50.8 |
1-1/4
31.8 |
2-11/16
68.3 |
1/2 |
6.0
2.72 |
|
1-5/8 |
NPL-26T |
2-110T |
7901
35144 |
2-1/16
52.4 |
7-1/2
190.5 |
5-7/16
138.1 |
6-1/16
154.0 |
2-1/8
54.0 |
5/8
15.9 |
4-3/16
106.4 |
2
50.8 |
1-1/4
31.8 |
2-13/16
71.4 |
1/2 |
6.5
2.95 |
|
1-11/16
1-3/4 |
NPL-27T
NPL-28T |
2-111T
2-112T |
7901
35144 |
2-1/16
52.4 |
7-1/2
190.5 |
5-7/16
138.1 |
6-1/16
154.0 |
2-1/8
54.0 |
5/8
15.9 |
4-3/16
106.4 |
2
50.8 |
1-1/4
31.8 |
2-15/16
74.6 |
1/2 |
6.5
2.95 |
|
1-15/16
2 |
NPL-31T
NPL-32RT |
2-115T
1-2T |
7889
35090 |
2-3/16
55.6 |
8-1/8
206.4 |
6
152.4 |
6-1/2
165.1 |
2-3/8
60.3 |
11/16
17.5 |
4-1/2
114.3 |
2-3/32
53.2 |
1-11/32
34.1 |
3-3/8
85.7 |
5/8 |
8.4
3.81 |
|
2 |
NPL-32T |
2-2T |
9752
43377 |
2-7/16
61.9 |
8-5/8
219.1 |
6-1/2
165.1 |
7
177.8 |
2-3/8
60.3 |
11/16
17.5 |
4-15/16
125.4 |
2-1/4
57.2 |
1-3/8
34.9 |
3-1/2
88.9 |
5/8 |
10.2
4.63 |
|
2-1/8
2-3/16 |
NPL-34T
NPL-35T |
2-22T
2-23T |
9752
43377 |
2-7/16
61.9 |
8-5/8
219.1 |
6-1/2
165.1 |
7
177.8 |
2-3/8
60.3 |
11/16
17.5 |
4-15/16
125.4 |
2-1/4
57.2 |
1-3/8
34.9 |
3-5/8
92.1 |
5/8 |
10.2
4.63 |
|
2-1/4 |
NPL-36T |
2-24T |
11789
52437 |
2-11/16
68.3 |
9-1/2
241.3 |
6-7/8
174.6 |
7-5/8
193.7 |
2-3/4
69.9 |
13/16
20.6 |
5-1/2
139.7 |
2-5/8
66.7 |
1-5/8
41.3 |
4-1/16
103.2 |
5/8 |
14.7
6.67 |
|
2-3/8
2-7/16 |
NPL-38T
NPL-39T |
2-26T
2-27T |
11789
52437 |
2-11/16
68.3 |
9-1/2
241.3 |
6-7/8
174.6 |
7-5/8
193.7 |
2-3/4
69.9 |
13/16
20.6 |
5-1/2
139.7 |
2-5/8
66.7 |
1-5/8
41.3 |
4-1/8
104.8 |
5/8 |
14.7
6.67 | |
标准载荷立式座NPL-12T、NPL-15T、NPL-16T、NPL-20RT现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
