P2B-SCH-103-E轴承尺寸规格 |
 |
|
Series |
Shaft Size |
Part Number |
Expansion
Description |
Part Number |
Non-Expansion
Description |
|
205 |
1
25mm |
064637
@ |
P2B-SCH-100-E
P2B-SCH-25M-E |
126147
125925 |
P2B-SCM-100
P2B-SCM-25M |
|
206 |
1-1/16 |
@ |
P2B-SCH-101-E |
- - - - - - |
- - - - - - - - - |
|
1-1/8 |
@ |
P2B-SCH-102-E |
- - - - - - |
- - - - - - - - - |
|
1 3/16 |
126405 |
P2B-SCH-103-E |
126147 |
P2B-SCM-103 |
|
1-1/4 |
053183 |
P2B-SCH-104S-E |
123810 |
P2B-SC-104 |
|
30mm |
053021 |
P2B-SCH-30M-E |
125926 |
P2B-SCM-30M |
|
207 |
1-1/4 |
@ |
P2B-SCH-104-E |
- - - - - - |
- - - - - - - - - |
|
1-5/16 |
@ |
P2B-SCH-105-E |
- - - - - - |
- - - - - - - - - |
|
1-3/8 |
@ |
P2B-SCH-106-E |
- - - - - - |
- - - - - - - - - |
|
1-7/16 |
126406 |
P2B-SCH-107-E |
126810 |
P2B-SCM-107 |
|
35mm |
@ |
P2B-SCH-35M-E |
125927 |
P2B-SCM-35M |
|
209 |
1-5/8 |
@ |
P2B-SCH-110L-E |
- - - - - - |
- - - - - - - - - |
|
1-11/16
1-3/4 |
057414
@ |
P2B-SCH-111-E
P2B-SCH-112-E |
126812
126813 |
P2B-SCM-111
P2B-SCM-112 |
|
45mm |
056481 |
P2B-SCH-45M-E |
125929 |
P2B-SCM-45M |
|
210 |
1-15/16 |
126407 |
P2B-SCH-115-E |
126814 |
P2B-SCM-115 |
|
2 |
052224 |
P2B-SCH-200-E |
126815 |
P2B-SCM-200 |
|
50mm |
056483 |
P2B-SCH-50M-E |
125930 |
P2B-SCM-50M |
|
211 |
2-3/16 |
126408 |
P2B-SCH-203-E |
126816 |
P2B-SCM-203 |
|
2-1/4 |
068800 |
P2B-SCH-204-E |
126817 |
P2B-SCM-204 |
|
55mm |
053025 |
P2B-SCH-55M-E |
125931 |
P2B-SCM-55M |
|
212 |
2-7/16
60mm |
126409
@ |
P2B-SCH-207-E
P2B-SCH-60M-E |
126818
- - - - - - |
P2B-SCM-207
- - - - - - - - - |
|

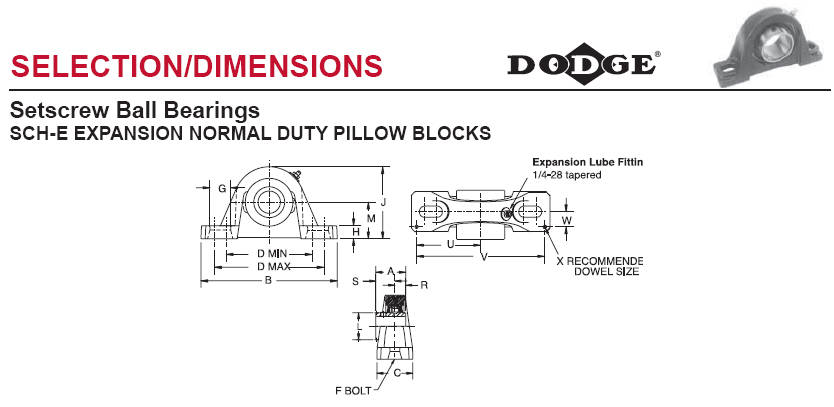

Series |
Shaft Size |
Weight
lbs kg |
A |
B |
C |
D
min. max. |
F |
|
Bolt |
G |
H |
J |
|
Dia. |
|
205 |
1
25mm |
2.8
1.2 |
1 3/16
30.2 |
6 1/4
158.8 |
1 47/64
44.1 |
4 1/4
108.0 |
5
127.0 |
1/2
M12 |
15/16
23.8 |
3/4
19.1 |
3 5/16
84.1 |
|
206 |
1-1/16 |
4.8 |
1 25/64 |
6 7/8 |
2 |
4 11/16 |
5 7/16 |
1/2 |
1 |
11/16 |
3 13/16 |
|
1-1/8 |
4.7 |
|
|
|
|
|
|
|
|
|
|
1-3/16 |
4.6 |
|
|
|
|
|
|
|
|
|
|
1-1/4 |
4.5 |
|
|
|
|
|
|
|
|
|
|
30mm |
1.9 |
35.3 |
174.6 |
50.8 |
119.1 |
138.1 |
M12 |
25.4 |
17.5 |
96.8 |
|
207 |
1-1/4 |
6.7 |
1 17/32 |
7 15/16 |
2 1/32 |
5 1/16 |
6 5/16 |
1/2 |
1 3/16 |
3/4 |
4 3/16 |
|
1-5/16 |
6.6 |
|
|
|
|
|
|
|
|
|
|
1-3/8 |
6.5 |
|
|
|
|
|
|
|
|
|
|
1-7/16 |
6.4 |
|
|
|
|
|
|
|
|
|
|
35mm |
2.7 |
38.9 |
201.6 |
51.6 |
128.6 |
160.3 |
M12 |
30.2 |
19.1 |
106.4 |
|
209 |
1-5/8 |
6.4 |
1 23/32 |
8 1/8 |
2 3/8 |
6 |
6 1/2 |
5/8 |
15/16 |
3/4 |
4 9/16 |
|
1-11/16
1-3/4 |
6.3
6.2 |
|
|
|
|
|
|
|
|
|
|
45mm |
2.6 |
43.7 |
206.4 |
60.3 |
152.4 |
165.1 |
M12 |
23.8 |
19.1 |
115.9 |
|
210 |
1-15/16 |
9.8 |
1 3/4 |
9 1/2 |
2 1/2 |
6 |
7 1/2 |
5/8 |
1 7/16 |
7/8 |
5 3/32 |
|
2 |
9.7 |
|
|
|
|
|
|
|
|
|
|
50mm |
4.0 |
44.5 |
241.3 |
63.5 |
152.4 |
190.5 |
M16 |
36.5 |
22.2 |
129.4 |
|
211 |
2-3/16 |
14.3 |
1 27/32 |
10 1/4 |
3 |
6 5/8 |
7 7/8 |
5/8 |
1 7/16 |
1 1/16 |
5 5/8 |
|
2-1/4 |
14.2 |
|
|
|
|
|
|
|
|
|
|
55mm |
5.9 |
46.8 |
260.4 |
76.2 |
168.3 |
200.0 |
M16 |
36.5 |
27.0 |
142.9 |
|
212 |
2-7/16
60mm |
16.6
6.8 |
2 9/32
57.9 |
11 1/4
285.8 |
3 1/4
82.6 |
7 3/16
182.6 |
8 13/16
223.8 |
3/4
M18 |
1 5/8
41.3 |
1 1/16
27.0 |
6 1/4
158.8 | |
近期推荐轴承型号P2B-SCH-103-E,
,
128647 INS-DL-015,
127725 F2B-DLEZ-103-SHCR,
032872 INS-PS-100,
129964 AN-GTM-15-70M,
126817 P2B-SCM-204,
130850 WSTU-SXR-45M,
023285 S1U-K-211R,
071442 EP4B-S2-211RE,
136074 TP-GM-215,
130796 WSTU-SXV-35M,
以上为我司部分轴承型号，如需查找其他型号，可登陆我们的现货中心栏目或致电021-52797858转8008询价,进行详细查询，谢谢！
|
| DODGE带座轴承品牌介绍： |
| DODGE的产品包括DODGE齿轮减速器，DODGE机械调速装置，DODGE轴装式减速器，DODGE带座轴承，DODGE运输机滚筒，DODGE联轴器，DODGE离合器和DODGE电制动器，配套齐全的各种的机械装置。DODGE公司创立于1881年，是北美机械动力传输产品的供应商。其产品大量稳定应用在的各个生产环节中，经受客户的现场检验。北美带座轴承的NEMA标准制定主要是参考DODGE的标准，DODGE为用户提供可靠，品种齐全的坚固耐用型带座轴承，同时提供拥机械产品，为传动装置在使用过程中护航。 |
上海川代轴承机械有限公司专业销售DODGE带座轴承 P2B-SCH-103-E轴承,DODGE带座轴承品牌供应商,我们为您提供P2B-SCH-103-E的具体的规格参数及报价，本公司同时销售包括DODGE带座轴承品牌在内的多种进口轴承，包括深沟球轴承、自动调心球轴承、角接触球轴承、圆柱滚子轴承、滚针轴承、球面滚子轴承、推力轴承、Y-轴承、滚轮轴承，直线轴承，滑动轴承，轴承箱及各种精密机械部件等产品，目前公司拥有现货库存、快捷的物流体系、能在较短的时间内为用户解决轴承的配套供应和提供个性化服务。
欢迎垂询DODGE带座轴承 P2B-SCH-103-E轴承价格和库存信息。咨询热线：021-52797858转8008询价 |
