INS-GTM-200轴承尺寸规格

Series

Shaft Size

Complete Unit

Unit without Adapter

Sleeve & Lock Nut

Adapter Sleeve & Lock

Nut Assembly

Part No.

   Description

Part No.

Description

Part No.

  Description

20 8

1-1/2

12978 6

INS-GT-108

12952 1

INS-GT-08

129914

AN-GT-08-108

1-5/8

129844

INS-GT-110

12995 5

AN-GT-08-110

40mm

129801

INS-GT-40M

129947

AN-GT-08-40M

209

1-5/8

129787

INS-GT-110L

129522

INS-GT-09

129915

AN-GT-09-110L

1-11/16

1-3/4

129788

129789

INS-GT-111

INS-GT-112

129916

129917

AN-GT-09-111

AN-GT-09-112

45mm

129802

INS-GT-45M

129948

AN-GT-09-45M

210

1-15/16

129790

INS-GT-115

129523

INS-GT-10

129918

AN-GT-10-115

2

129791

INS-GT-200

129919

AN-GT-10-200

50mm

129803

INS-GT-50M

129949

AN-GT-10-50M

211

2

129815

INS-GTM-200

129524

INS-GT-11

129932

AN-GTM-11-200

2-3/16

2-1/4

129792

129845

INS-GT-203

INS-GT-204

129920

129956

AN-GT-11-203

AN-GT-11-204

55mm

129804

INS-GT-55M

129950

AN-GT-11-55M

212

2-1/4

129817

INS-GTM-204

129525

INS-GT-12

129934

AN-GTM-12-204

2-7/16

129793

INS-GT-207

129921

AN-GT-12-207

60mm

129805

INS-GT-60M

129951

AN-GT-12-60M

214

2-1/2

129819

INS-GTM-208

129526

INS-GT-14

129936

AN-GTM-14-208

2-11/16

129794

INS-GT-211

129922

AN-GT-14-211

70mm

129806

INS-GT-70M

129952

AN-GT-14-70M

215

2-15/16

129795

INS-GT-215

129527

INS-GT-15

129923

AN-GT-15-215

3

@

INS-GT-300

129987

AN-GT-15-300

75mm

129807

INS-GT-75M

129953

AN-GT-15-75M

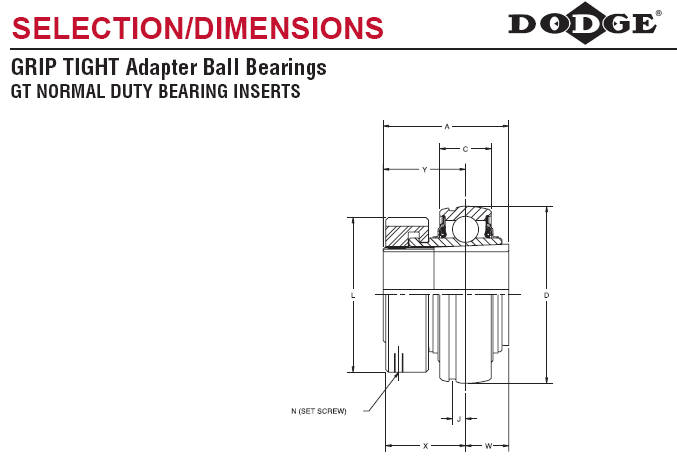

Series

Shaft Size

Weight

lbs  kg

A

C

D

J

L

N

SetScrew

 (UNF)

W#

X

Y#

208

1-1/2

2.2

1-27/32

0.8661

3.1496

0.224

2-1/2

#10-32 x 1/4

21/32

1-9/64

1-3/16

1-5/8

2.0

40mm

1.0

46.8

22.0

80.0

5.7

63.5

16.7

29.0

30.2

209

1-5/8

2.5

1-27/32

0.8661

3.3465

0.248

2-43/64

#10-32 x 1/4

21/32

1-5/32

1-3/16

1-11/16

1-3/4

2.5

2.5

45mm

1.2

46.8

22.0

85.0

6.3

67.9

16.7

29.4

30.2

210

1-15/16

3.0

1-55/64

0.8661

3.5433

0.248

2-15/16

#10-32 x 1/4

21/32

1-5/32

1-13/64

2

3.0

50mm

1.4

47.2

22.0

90.0

6.3

74.6

16.7

29.4

30.6

211

2

3.6

1-59/64

0.9449

3.9370

0.267

3-1/4

#10-32 x 1/4

45/64

1-3/16

1-7/32

2-3/16

2-1/4

3.4

3.3

55mm

1.6

48.8

24.0

100.0

6.8

82.6

17.9

30.2

31.0

212

2-1/4

4.8

2-7/64

1.0240

4.3307

0.250

3-1/2

#10-32 x 1/4

49/64

1-5/16

1-11/32

2-7/16

4.8

60mm

2.2

53.6

26.0

110.0

6.4

88.9

19.4

33.3

34.1

214

2-1/2

5.4

2-25/64

1.1020

4.9213

0.265

3-13/16

#10-32 x 1/4

7/8

1-15/32

1-33/64

2-11/16

5.0

70mm

2.5

60.7

28.0

125.0

6.7

96.8

22.2

37.3

38.5

215

2-15/16

5.9

2-9/16

1.1420

5.1181

0.265

4-1/4

#10-32 x 1/4

57/64

1-5/8

1-43/64

3

5.7

75mm

2.7

65.1

29.0

130.0

6.7

108.0

22.6

41.3

42.5
