R18512392X轴承尺寸规格 |
a) For O-ring: Size 25: Ø 5 • 1.5 (mm), size 35 to 65: Ø 7 • 1.5 (mm). Open lube port if necessary (see lubricating and mounting instructions).
b) Recommended position for pin holes (E4 dimensions, see lubricating and mounting instructions). Pre-drilled holes may be present at this position for manufacturing reasons. They are suitable for drilling out.
c) Lube nipple, thread M6 - 8 deep: Connection is possible on all sides (at front and top for size 25). Dimensions differ among different connectors See "Accessories" for more information about lube ports.
d) For Roller Guide Rails of accuracy class H, this base area may be without a base slot for manufacturing reasons.
e) Sealing plugs may be present at this position for manufacturing reasons. Remove these prior to mounting.
f) Size 65
| V1 |
|
7,50 |
mm |
| E9 |
|
8,30 |
mm |
| E8.1 |
|
- |
mm |
| E4 |
|
55 |
mm |
| E9.1 |
|
- |
mm |
| B1 |
|
63,50 |
mm |
| A4 |
|
- |
mm |
| A2 |
|
23 |
mm |
| A |
|
70 |
mm |
| N2 |
|
7,30 |
mm |
| ØS5 |
|
7 |
mm |
| ØS1 |
|
6,7 |
mm |
| N5 |
|
5,50 |
mm |
| E9.2 |
|
21,40 |
mm |
| K1 |
|
14,05 |
mm |
| Dimension H2 without cover strip |
|
23,40 |
mm |
| H1 |
|
30 |
mm |
| E1 |
|
57 |
mm |
| E8.2 |
|
40,20 |
mm |
| E8 |
|
33,40 |
mm |
| E3 |
|
40 |
mm |
| E2 |
|
45 |
mm |
| B |
|
97 |
|
| A3 |
|
23,50 |
mm |
| A1 |
|
35 |
mm |
| H |
|
36 |
mm |
| S9 (Thread for adjoining parts) |
|
M3 ‒ 6.5mm deep |
|
| S2 |
|
M8 |
|
| N6 |
|
14.3 mm ±0.5 |
|
| N1 |
|
9 |
mm |
| K2 |
| <TD style="BOX-SIZING: border-box; BORDER-TOP: rgb(238,238,238) 1px solid; VERTICAL-ALIGN: top; BORDER-LEFT-COLOR: rgb(238,238,238); PADDING-BOTTOM: 5px; BORDER-BOTTOM-COLOR: rgb(238,238,238); PADDING-TOP: 5px; PADDING-LEFT: 5px; BORDER-RIGHT-COLOR: rgb(238,238,2</body> |
近期推荐轴承型号R18512392X,
,
R1025-020-30,
R1035-630-20,
R1037-616-20,
R1096-212-86,
R1502-210-75,
R065824040,
1622-593-10,
1621-713-20,
1624-294-20,
R103862020,
以上为我司部分轴承型号，如需查找其他型号，可登陆我们的现货中心栏目或致电021-52797858转8008询价,进行详细查询，谢谢！
|

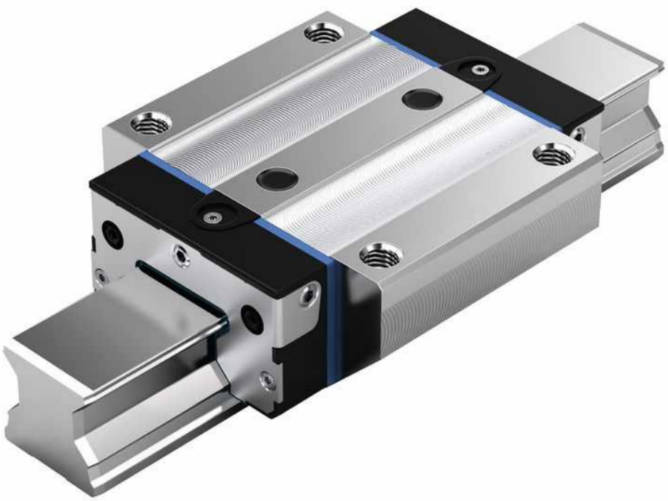

| R18512392X产品详细图片： |
 |
| Rexroth-STAR精密轴承品牌介绍： |
| 德国博世力士乐(BOSCH REXROTH STAR)滚珠导轨导向系统是特别为机床和工业机器人而研制的，这种结构紧凑，滚珠支撑的直线导向系统分为不同的精度等级，并且具有极高的承载能力和很高的刚度。结构紧凑的组装单元有八种市场上常见的规格,在所有四个主要承载方向上具有高的额定载荷。STAR导轨和滑块在滚道区均采用独有精密加工，可以在同意精度等级内任意组合。甚至可以与滚柱导轨导向系统进行全面互换。包括STAR滑块系列，STAR导轨系列等。 |
上海川代轴承机械有限公司专业销售Rexroth-STAR精密轴承 R18512392X轴承,Rexroth-STAR精密轴承品牌供应商,我们为您提供R18512392X的具体的规格参数及报价，本公司同时销售包括Rexroth-STAR精密轴承品牌在内的多种进口轴承，包括深沟球轴承、自动调心球轴承、角接触球轴承、圆柱滚子轴承、滚针轴承、球面滚子轴承、推力轴承、Y-轴承、滚轮轴承，直线轴承，滑动轴承，轴承箱及各种精密机械部件等产品，目前公司拥有现货库存、快捷的物流体系、能在较短的时间内为用户解决轴承的配套供应和提供个性化服务。
欢迎垂询Rexroth-STAR精密轴承 R18512392X轴承价格和库存信息。咨询热线：021-52797858转8008询价 |
