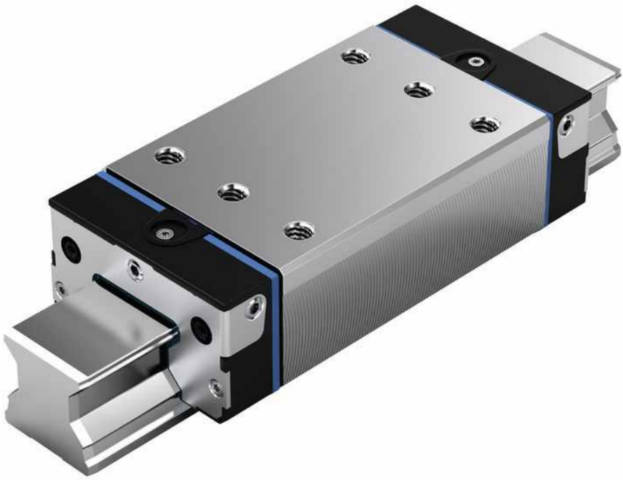

R18232312X轴承尺寸规格 |
a) For O-ring
Size 25: Ø 5 • 1.5 (mm)
Sizes 35 to 65: Ø 7 • 1.5 (mm)
b) Recommended position for pin holes
(E4 dimensions, see section entitled “Instruction for mounting", segment "Pinned fitting").
c) Lube nipple, thread M6 - 8 deep:
Connection is possible on all sides (at front and top for size 25). Dimensions differ among different connectors See "Accessories" for more information about lube ports.
d) For Roller Guide Rails of accuracy class H, this base area may be without a base slot for manufacturing reasons.
e) Sealing plugs may be present at this position for manufacturing reasons.
Remove these prior to mounting.
f) Size 65
| T2 |
|
- |
mm |
| A |
|
48 |
mm |
| A2 |
|
23 |
mm |
| B |
|
115 |
|
| E1 |
|
35 |
mm |
| E8 |
|
33,40 |
mm |
| E8.2 |
|
40,20 |
mm |
| E9.1 |
|
- |
mm |
| H |
|
36 |
mm |
| Dimension H2 with cover strip |
|
23,60 |
mm |
| K1 |
|
20,55 |
mm |
| N3 |
|
8 |
mm |
| N6 |
|
14.3 mm ±0.5 |
|
| ØS5 |
|
7 |
mm |
| T (Dimension T = Division of the Roller Guide Rail) |
|
30 |
mm |
| V1 |
|
7,50 |
mm |
| A1 |
|
24 |
mm |
| A3 |
|
12 |
mm |
| B1 |
|
81,50 |
mm |
| E2 |
|
50 |
mm |
| E8.1 |
|
- |
mm |
| E9 |
|
8,30 |
mm |
| E9.2 |
|
21,40 |
mm |
| H1 |
|
30 |
mm |
| Dimension H2 without cover strip |
|
23,40 |
mm |
| K2 |
|
- |
mm |
| N5 |
|
5,50 |
mm |
| S2 |
|
M6 |
|
| S9 (Thread for adjoining parts) |
|
M3 ‒ 6.5mm deep |
| |
