R151306210轴承尺寸规格 |
| 38
Precision Ball Screw Assemblies
Bosch Rexroth Corp. Linear Motion and Assembly Technologies Screw drives R310A 3301 (2005)
Rexroth mounting dimensions
With standard seals
Reinforced seals, see Page 110 (some
sizes not available)
Adjustable preload
For precision-rolled screws SN-R of
tolerance grade T5, T7, T9 and precision
screws SN-F of tolerance grade P3, P5;
P1 upon request
With left-hand thread in some versions
Adjustable-Preload Single Nut SEM-E-S
8 x 2.5R x 1.588 - 3 R1532 230 04 2200 2800 15 15.953 15.987
12 x 5R x 2 - 3 R1532 460 24 3800 5800 30 23.940 23.975
12 x 10R x 2 - 2 R1532 490 14 2500 3600 60 23.940 23.975
16 x 5R x 3 - 4 R1512 010 24 12300 16100 30 27.940 27.975
16 x 10R x 3 - 3 R1512 040 14 9600 12300 60 27.940 27.975
16 x 16R x 3 - 2 R1512 060 14 6300 7600 96 32.945 32.973
20 x 5R x 3 - 4 R1512 110 14 14300 21500 30 32.935 32.970
20 x 20R x 3.5 - 2 R1512 170 14 9100 12100 120 37.945 37.973
25 x 5R x 3 - 4 R1512 210 14 15900 27200 30 37.935 37.970
25 x 10R x 3 - 4 R1512 240 14 15700 27000 60 37.935 37.970
25 x 25R x 3.5 - 2 R1512 280 14 10100 15100 150 47.945 47.973
32 x 5R x 3.5 - 4 R1512 310 14 21600 40000 23 47.935 47.970
32 x 5L x 3.5 - 4 R1552 310 04 21600 40000 23 47.935 47.970
32 x 10R x 3.969 - 5 R1512 340 14 31700 58300 47 47.935 47.970
32 x 20R x 3.969 - 2 R1512 370 14 13500 21800 94 55.941 55.969
32 x 32R x 3.969 - 2 R1512 390 14 13400 22000 150 55.941 55.969
40 x 5R x 3.5 - 5 R1512 410 14 29100 64100 19 55.931 55.966
40 x 5L x 3.5 - 5 R1552 410 04 29100 64100 19 55.931 55.966
40 x 10R x 6 - 4 R1512 440 14 50000 86400 38 62.931 62.966
40 x 10L x 6 - 4 R1552 440 04 50000 86400 38 62.931 62.966
40 x 20R x 6 - 3 R1512 470 14 37900 62800 75 62.941 62.969
40 x 40R x 6 - 2 R1512 490 14 25500 40300 150 71.941 71.969
50 x 5R x 3.5 - 5 R1512 510 14 32000 81300 15 67.931 67.966
50 x 10R x 6 - 6 R1512 540 14 79700 166500 30 71.931 71.966
50 x 20R x 6.5 - 3 R1512 570 14 47900 87900 60 84.936 84.964
50 x 40R x 6.5 - 2 R1512 590 14 32100 55800 120 84.936 84.964
63 x 10R x 6 - 6 R1512 640 14 88800 214300 24 84.926 84.961
63 x 20R x 6.5 - 3 R1512 670 14 53200 112100 48 94.936 94.964
63 x 40R x 6.5 - 2 R1512 690 14 36900 74300 95 94.936 94.964
80 x 10R x 6.5 - 6 R1512 740 14 108400 291700 19 104.926 104.961
80 x 20R x 12.7 - 6 R1512 770 24 262700 534200 30 124.931 124.959
SEM-E-S 20 x 5R x 3-4 1 2 T7 R 82Z120 41Z120 1250 1 0
Standard series
BB
CB
CBA
BAA
BAAA
BBA
BA
BAA
BBBBB
CCCB Category
* See P. 99 Characteristic speed d0 · n and P. 120 Critical speed nk
d0 = nominal diameter
P = lead
(R = right-hand, L = left-hand)
Dw = ball diameter
i = number of ball track turns Ordering code:
Size Part number Load ratings Speed* Centering diameter D1
dyn. stat. after adjustment
d0 x P x Dw - i C C0 vmax. (mm)
(N) (N) [m/min] min. max. |
近期推荐轴承型号R151306210,
,
R162282220,
R1055-050-00,
R0668-030-00,
R0721-525-88,
R153246023,
R151249012,
4WE 6 G6X/EG24N9K4,
R151241221,
1623-814-20,
1623-614-10,
以上为我司部分轴承型号，如需查找其他型号，可登陆我们的现货中心栏目或致电021-52797858转8008询价,进行详细查询，谢谢！
|

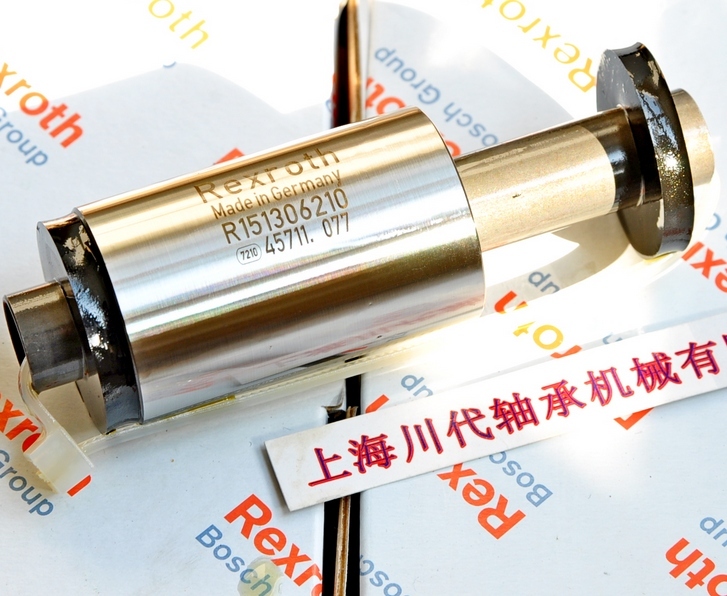

| R151306210产品详细图片： |
 |
| Rexroth-STAR精密轴承品牌介绍： |
| 德国博世力士乐(BOSCH REXROTH STAR)滚珠导轨导向系统是特别为机床和工业机器人而研制的，这种结构紧凑，滚珠支撑的直线导向系统分为不同的精度等级，并且具有极高的承载能力和很高的刚度。结构紧凑的组装单元有八种市场上常见的规格,在所有四个主要承载方向上具有高的额定载荷。STAR导轨和滑块在滚道区均采用独有精密加工，可以在同意精度等级内任意组合。甚至可以与滚柱导轨导向系统进行全面互换。包括STAR滑块系列，STAR导轨系列等。 |
上海川代轴承机械有限公司专业销售Rexroth-STAR精密轴承 R151306210轴承,Rexroth-STAR精密轴承品牌供应商,我们为您提供R151306210的具体的规格参数及报价，本公司同时销售包括Rexroth-STAR精密轴承品牌在内的多种进口轴承，包括深沟球轴承、自动调心球轴承、角接触球轴承、圆柱滚子轴承、滚针轴承、球面滚子轴承、推力轴承、Y-轴承、滚轮轴承，直线轴承，滑动轴承，轴承箱及各种精密机械部件等产品，目前公司拥有现货库存、快捷的物流体系、能在较短的时间内为用户解决轴承的配套供应和提供个性化服务。
欢迎垂询Rexroth-STAR精密轴承 R151306210轴承价格和库存信息。咨询热线：021-52797858转8008询价 |
