R14轴承尺寸规格 |
|
|
| |
|
英制 R系列 |
|
XLB No. |
Dimensions |
Load Ratings |
|
Open |
ZZ |
2RS |
d |
D |
width |
r |
Dynamic |
Static |
|
Open |
ZZ、2RS |
|
R8 |
R8ZZ |
R8-2RS |
12.700 |
28.575 |
6.350 |
7.938 |
0.3 |
5.10 |
2.38 |
|
R10 |
R10ZZ |
R10-2RS |
15.875 |
34.925 |
7.140 |
8.730 |
0.3 |
6.00 |
3.25 |
|
R12 |
R12ZZ |
R12-2RS |
19.050 |
41.275 |
7.938 |
11.112 |
0.6 |
9.38 |
5.02 |
|
R14 |
R14ZZ |
R14-2RS |
22.225 |
47.625 |
9.525 |
12.700 |
0.6 |
10.00 |
5.85 |
|
R16 |
R16ZZ |
R16-2RS |
25.400 |
50.800 |
9.525 |
12.700 |
0.6 |
10.00 |
5.85 |
|
R18 |
R18ZZ |
R18-2RS |
28.575 |
53.975 |
9.525 |
12.700 |
1 |
13.20 |
8.30 |
|
R20 |
R20ZZ |
R20-2RS |
31.750 |
57.150 |
9.525 |
12.700 |
1 |
13.20 |
8.30 |
|
R22 |
R22ZZ |
R22-2RS |
34.925 |
63.500 |
11.112 |
14.288 |
1 |
16.20 |
10.50 |
|
R24 |
R24ZZ |
R24-2RS |
38.100 |
66.675 |
11.112 |
14.288 |
1 |
17.03 |
11.70 | |
| 英制 RLS、RMS 系列 |
|
XLB No. |
Dimensions |
Load Ratings |
|
Open |
ZZ |
2RS |
d |
D |
B |
r |
Dynamic |
Static |
|
RLS4 |
RLS4ZZ |
RLS4-2RS |
12.700 |
33.338 |
9.525 |
0.6 |
6.82 |
3.05 |
|
RLS5 |
RLS5ZZ |
RLS5-2RS |
15.875 |
39.688 |
11.112 |
0.6 |
7.65 |
3.72 |
|
RLS6 |
RLS6ZZ |
RLS6-2RS |
19.050 |
47.625 |
14.288 |
1 |
12.80 |
6.65 |
|
RLS7 |
RLS7ZZ |
RLS7-2RS |
22.225 |
50.800 |
14.288 |
1 |
12.80 |
6.65 |
|
RLS8 |
RLS8ZZ |
RLS8-2RS |
25.400 |
57.150 |
15.875 |
1 |
14.00 |
7.88 |
|
RLS9 |
RLS9ZZ |
RLS9-2RS |
28.575 |
63.5 |
15.875 |
1 |
19.5 |
10.0 |
|
RLS10 |
RLS10ZZ |
RLS10-2RS |
31.750 |
69.85 |
17.46 |
1.1 |
22.5 |
11.8 |
|
RLS11 |
RLS11ZZ |
RLS11-2RS |
34.925 |
76.2 |
17.46 |
1.1 |
25.5 |
13.7 |
|
RLS12 |
RLS12ZZ |
RLS12-2RS |
38.100 |
82.55 |
19.05 |
1.1 |
30.7 |
16.6 |
|
RLS13 |
RLS13ZZ |
RLS13-2RS |
41.275 |
88.9 |
19.05 |
1.1 |
33.2 |
18.6 |
|
RLS14 |
RLS14ZZ |
RLS14-2RS |
44.450 |
95.25 |
20.64 |
1.5 |
35.1 |
19.6 |
|
RLS15 |
RLS15ZZ |
RLS15-2RS |
47.625 |
101.6 |
20.64 |
1.5 |
43.6 |
25.0 |
|
RLS16 |
RLS16ZZ |
RLS16-2RS |
50.8 |
101.6 |
20.64 |
1.5 |
43.6 |
25.0 |
|
RLS18 |
RLS18ZZ |
RLS18-2RS |
57.15 |
114.3 |
22.23 |
1.5 |
47.5 |
28.0 |
|
RLS20 |
RLS20ZZ |
RLS20-2RS |
63.50 |
127.0 |
23.81 |
1.5 |
61.8 |
37.5 |
|
RLS22 |
RLS22ZZ |
RLS22-2RS |
69.85 |
133.4 |
23.81 |
1.5 |
66.3 |
40.5 |
|
RMS4 |
RMS4ZZ |
RMS4-2RS |
12.700 |
41.275 |
15.875 |
1 |
11.50 |
5.42 |
|
RMS5 |
RMS5ZZ |
RMS5-2RS |
15.875 |
46.038 |
15.875 |
1 |
13.5 |
6.55 |
|
RMS6 |
RMS6ZZ |
RMS6-2RS |
19.05 |
50.8 |
17.46 |
1.1 |
15.9 |
7.80 |
|
RMS7 |
RMS7ZZ |
RMS7-2RS |
22.225 |
57.15 |
17.46 |
1.1 |
18.6 |
9.15 |
|
RMS8 |
RMS8ZZ |
RMS8-2RS |
25.4 |
63.5 |
19.05 |
1.1 |
22.5 |
11.4 |
|
RMS9 |
RMS9ZZ |
RMS9-2RS |
28.575 |
71.438 |
20.625 |
1.1 |
28.1 |
14.6 |
|
RMS10 |
RMS10ZZ |
RMS10-2RS |
31.75 |
79.375 |
22.225 |
1.5 |
33.2 |
18.0 |
|
RMS11 |
RMS11ZZ |
RMS11-2RS |
34.925 |
88.9 |
22.225 |
1.5 |
41.0 |
22.4 |
|
RMS12 |
RMS12ZZ |
RMS12-2RS |
38.1 |
95.25 |
23.81 |
1.5 |
41.0 |
22.4 |
|
RMS13 |
RMS13ZZ |
RMS13-2RS |
41.275 |
101.6 |
23.81 |
1.5 |
52.7 |
30.0 |
|
RMS14 |
RMS14ZZ |
RMS14-2RS |
44.45 |
107.95 |
26.99 |
2.0 |
61.8 |
36.0 |
|
RMS15 |
RMS15ZZ |
RMS15-2RS |
47.625 |
114.3 |
26.99 |
2.0 |
61.8 |
36.0 |
|
RMS16 |
RMS16ZZ |
RMS16-2RS |
50.8 |
114.3 |
26.99 |
2.0 |
61.8 |
36.0 |
|
RMS18 |
RMS18ZZ |
RMS18-2RS |
57.15 |
127.0 |
31.75 |
2.0 |
81.9 |
48.0 |
|
RMS20 |
RMS20ZZ |
RMS20-2RS |
63.5 |
139.7 |
31.75 |
2.0 |
92.3 |
56.0 | | | | | | |
近期推荐轴承型号R14,
,
6201-1/2-2RS,
6201-1/2"-2RS,
5209-2RS,
RMS9,
R8ZZ,
RLS13,
R16-2RS,
RLS12,
RLS12,
LJ1.3/8,
以上为我司部分轴承型号，如需查找其他型号，可登陆我们的现货中心栏目或致电021-52797858转8008询价,进行详细查询，谢谢！
|

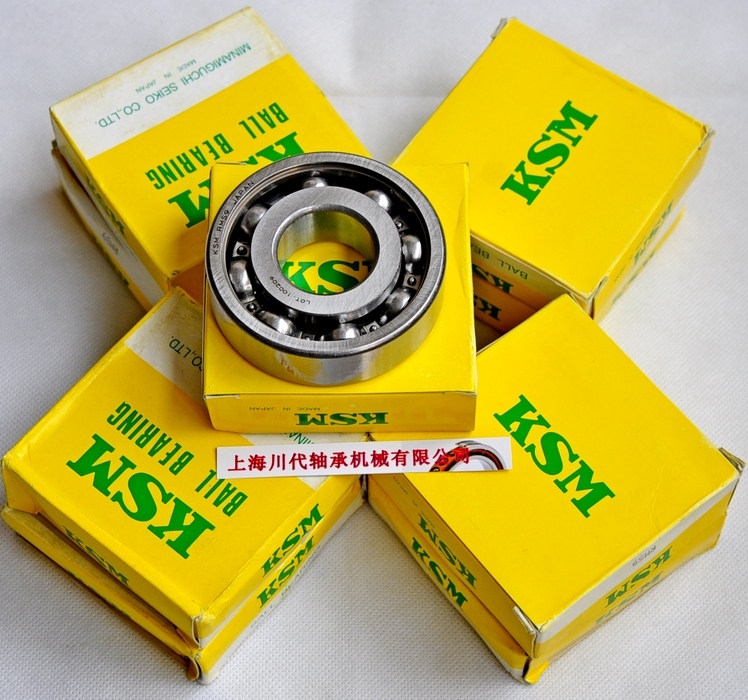

| R14产品详细图片： |
 |
| KSM品牌介绍： |
| 该品牌介绍正在更新中 |
上海川代轴承机械有限公司专业销售KSM R14轴承,KSM品牌供应商,我们为您提供R14的具体的规格参数及报价，本公司同时销售包括KSM品牌在内的多种进口轴承，包括深沟球轴承、自动调心球轴承、角接触球轴承、圆柱滚子轴承、滚针轴承、球面滚子轴承、推力轴承、Y-轴承、滚轮轴承，直线轴承，滑动轴承，轴承箱及各种精密机械部件等产品，目前公司拥有现货库存、快捷的物流体系、能在较短的时间内为用户解决轴承的配套供应和提供个性化服务。
欢迎垂询KSM R14轴承价格和库存信息。咨询热线：021-52797858转8008询价 |
