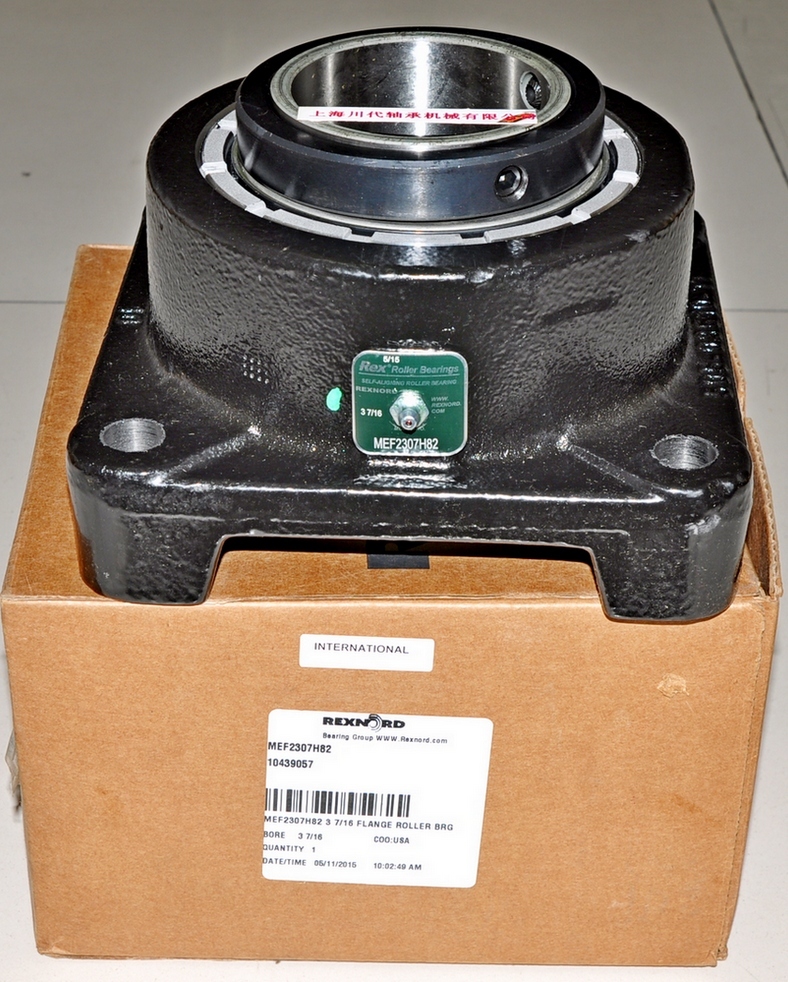

MEF2307H82轴承尺寸规格

Bolt Spacing - Inch: 7.0000
Bolt Spacing - Millimeter: 177.8000
Bore - Inch: 3.4380
Bore - Millimeter: 87.3250
Cartridge Pilot Diameter - Inc: 0
Cartridge Pilot Diameter - Mil: 0
Common Part Number: FB4B3.438BC9.9SQ
Company: REXNORD
Expansion / Non-expansion: Non-expansion
Global Part Number (GPN): 555486
Harmonized Tariff Code: 8483.20.40.80
Housing Configuration: 1 Piece Solid
Housing Material: Cast Iron
Housing Style: 4 Bolt Square Flange Block
Image Name: INDREXFBXXXX_KEF2_4BLT.jpg
Inch - Metric: Inch
Insert Part Number: 2307U
Keyword String: Flanged
Keyword 1: Flanged
Length Thru Bore - Inch: 4.3750
Length Thru Bore - Millimeter: 111.1250
Long Description: 4 Bolt Square Flange Block; 3-
Manufacturer Internal Number: 6829849
Manufacturer Item Number: MEF2307H82
Manufacturer URL: http://www.rexnord.com
Mounting Bolts: 3/4 Inch
Mounting Method: Concentric Collar
Nominal Bolt Circle Diameter R: 9.9000
Nominal Bolt Circle Diameter R: 251.5000
Noun: Bearing
Number of Mounting Holes: 4
Other Features: Double Row | Spherical | Singl
Pilot Configuration: No Pilot
Relubricatable: Yes
Rolling Element: Roller Bearing
Seals: Heavy Contact
Short Description: Bearing, Flanged; 3-7/16" Bore
Temporary Global Part Number (: 10081978979
TGPN Unit of Measure: EA
UNSPSC: 31171501
Weight / LBS: 40.5000
