R1512 110 75轴承尺寸规格 |

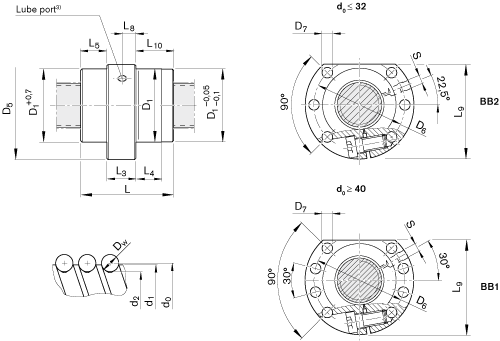

| Click to enlarge picture.
|
|
| Part numbers (TNR) |
R1512 110 75 |
|
| Size d0 x P x Dw - i |
20 x 5R x 3 - 4 |
|
| Category |
B (stocked, but availability should be inquired) |
|
| C [N] |
14300 |
|
| C0 stat. [N] |
21500 |
|
| vmax [m/min] |
30 |
| |
See additional information "Technical Notes" chapter Characteristic speed d0*n and additional information "Design Calculations" chapter Critical speed ncr | |
| d1 [mm] |
19 |
|
| d2 [mm] |
16.9 |
|
| D1 f9 [mm] |
36 |
|
| D5 [mm] |
58 |
|
| Hole pattern |
BB2 |
|
| D6 [mm] |
47 |
|
| D7 [mm] |
6.6 |
|
| L [mm] |
40 |
|
| L3 [mm] |
15 |
|
| L4 [mm] |
10 |
|
| L5 [mm] |
12.5 |
|
| L8 [mm] |
7.1 |
|
| L9 [mm] |
51 |
|
| L10 [mm] |
12.5 |
|
| S [mm] |
M6 |
| |
See additional information "Technical Notes" chapter Characteristic speed d0*n and additional information "Design Calculations" chapter Critical speed nk | |
| m [kg] |
0.33 |
|
| Product group info |
Standard series
Mounting dimension per DIN 69 051, Part 5
Flange type C
With standard seals
Reinforced seals, see Catalog R310EN 3301
Adjustable preload
For precision-rolled scews SN-R of tolerance grade T5, T7
When setting up applications, do not allow components to collide with the Front Lube Unit. |
| |
