R1502 770 96轴承尺寸规格 |

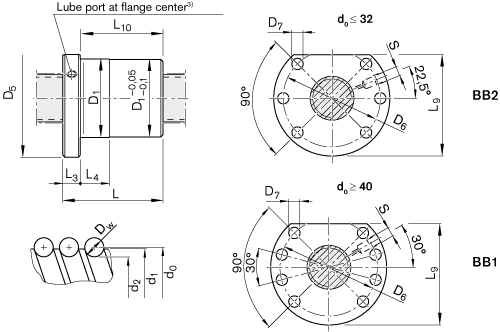

| Click to enlarge picture.
|
|
| Part numbers (TNR) |
R1502 770 96 |
|
| Size d0 x P x Dw - i |
80 x 20R x 12,7 - 6 |
| |
See additional information "Technical Notes" chapter Characteristic speed d0*n and additional information "Design Calculations" chapter Critical speed nk | |
| Category |
B (stocked, but availability should be inquired) |
|
| C [N] |
262700 |
|
| C0 stat. [N] |
534200 |
|
| vmax [m/min] |
30 |
| |
See additional information "Technical Notes" chapter Characteristic speed d0*n and additional information "Design Calculations" chapter Critical speed ncr | |
| d1 [mm] |
76 |
|
| d2 [mm] |
67 |
|
| D1 g6 [mm] |
125 |
|
| D5 [mm] |
165 |
|
| Hole pattern |
BB1 |
|
| D6 [mm] |
145 |
|
| D7 [mm] |
13.5 |
|
| L [mm] |
170 |
|
| L3 [mm] |
25 |
|
| L4 [mm] |
25 |
|
| L9 [mm] |
147.5 |
|
| L10 [mm] |
145 |
|
| S [mm] |
M8x1 |
| |
See additional information "Technical Notes" chapter Characteristic speed d0*n and additional information "Design Calculations" chapter Critical speed nk | |
| m [kg] |
10.20 |
|
| Product group info |
Standard series
Mounting dimensions per DIN 69 051, Part 5
Flange type C
With standard seals
Reinforced seals see Catalog R310EN 3301
With backlash, reduced backlash, preload 2%; 3%; 5%
For precision-rolled scews SN-R of tolerance grade T5, T7, T9
When setting up application, do not allow components to collide with the Front Lube Unit. |
| |
