R0667-030-00轴承尺寸规格 |
| 148 Bosch Rexroth AG Linear Bushings and Shafts R310EN 3100 (2007.03) Linear Bushings for Combined Linear and Rotary Motion Structural design Standard Linear Bushing (closed type) Needle bearing Steel spacer rings Retaining rings – – – – With needle bearing Linear Bushings for Combined Linear and Rotary Motion, R0665 with needle bearings, without wiper seals Linear Bushings for Combined Linear and Rotary Motion, R0667 with needle bearings, with wiper seals Shaft Ø d Part numbers Weight With two seals Without seals (mm) (kg) 5 R0667 005 00 R0665 005 00 0.02 8 R0667 008 00 R0665 008 00 0.04 12 R0667 012 00 R0665 012 00 0.08 16 R0667 016 00 R0665 016 00 0.10 20 R0667 020 00 R0665 020 00 0.20 25 R0667 025 00 R0665 025 00 0.34 30 R0667 030 00 R0665 030 00 0.56 40 R0667 040 00 R0665 040 00 1.39 50 R0667 050 00 R0665 050 00 2.18 60 R0667 060 00 R0665 060 00 4.14 80 R0667 080 00 R0665 080 00 7.11 Bosch Rexroth AG 149 R310EN 3100 (2007.03) Linear Bushings and Shafts Determination of the dynamic load capacities is based on a travel life of 100,000 m. Often only 50,000 m are actually stipulated. For comparison: Multiply values C from the table by 1.26. Dimensions Contrary to the illustration, these sizes have two needle bearings. The basic body is a special version of the closed Standard Linear Bushing. Seeger-Orbis GmbH. The load capacities stated are minimal values as the orientation and direction of load cannot always be precisely defined. 1) 2) 3) 4) Shaft: dh6 Housing bore: DK6 or DK7 Other tolerance zones may be selected for special purposes (refer to the rotary bearing manufacturer’s mounting recommendations). For axial retention of the needle bearing in the housing, see installation recommendation. Installation of the needle bearing in the housing without additional axial retention is sufficient for many applications. Recommended tolerances Installation recommendation Retaining ring Dimensions (mm) Retaining ring3) Load capacities4) (N) Ø d D D1 b A B D2 D3 D4 C3 C4 C C0 H11 H12 H13 5 19 12 12 12 22 13.8 – 19.5 14.6 1.3 SB19 180 140 8 24 16 13 14.1 25 19.3 23 24.8 16.5 1.3 SB24 320 240 12 30 22 16 20 32 24.2 28 31 23.2 1.6 SB30 420 280 16 34 26 20 22.1 36 28.4 32 35 25.3 1.6 SB34 580 440 20 42 32 20 28 45 35.1 40 43.2 31.2 1.6 SB42 1170 860 25 50 40 30 40 58 43.1 48 51.2 43.2 1.6 SB50 2080 1560 30 57 47 30 48 68 49.1 55 58.5 51.2 1.6 SB57 2820 2230 401) 80 62.22) 56 56 80 74.2 – 81.8 60.2 2.2 SB80 5170 3810 501) 92 75 70 73.1 100 80.6 90 94 78.3 2.7 SB92 8260 6470 601) 110 90 70 95 125 95 108 112.3 100.2 2.7 SB110 11500 9160 801) 140 120 81.6 125 165 128 138 142.6 130.2 2.7 SB140 21000 16300 Operating temperatures –10 °C to 80 °C |
近期推荐轴承型号R0667-030-00,
,
1622-194-10,
R1621-524-10,
R1622-113-22,
1666-194-20,
R0600-016-00,
R1065-212-00,
R1037-816-20,
R0696-012-80,
R153246012,
1653-493-10,
以上为我司部分轴承型号，如需查找其他型号，可登陆我们的现货中心栏目或致电021-52797858转8008询价,进行详细查询，谢谢！
|

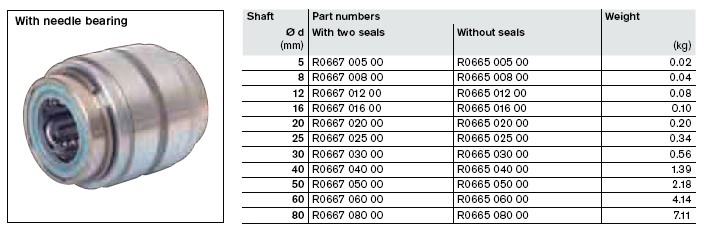

| R0667-030-00产品详细图片： |
 |
| Rexroth-STAR精密轴承品牌介绍： |
| 德国博世力士乐(BOSCH REXROTH STAR)滚珠导轨导向系统是特别为机床和工业机器人而研制的，这种结构紧凑，滚珠支撑的直线导向系统分为不同的精度等级，并且具有极高的承载能力和很高的刚度。结构紧凑的组装单元有八种市场上常见的规格,在所有四个主要承载方向上具有高的额定载荷。STAR导轨和滑块在滚道区均采用独有精密加工，可以在同意精度等级内任意组合。甚至可以与滚柱导轨导向系统进行全面互换。包括STAR滑块系列，STAR导轨系列等。 |
上海川代轴承机械有限公司专业销售Rexroth-STAR精密轴承 R0667-030-00轴承,Rexroth-STAR精密轴承品牌供应商,我们为您提供R0667-030-00的具体的规格参数及报价，本公司同时销售包括Rexroth-STAR精密轴承品牌在内的多种进口轴承，包括深沟球轴承、自动调心球轴承、角接触球轴承、圆柱滚子轴承、滚针轴承、球面滚子轴承、推力轴承、Y-轴承、滚轮轴承，直线轴承，滑动轴承，轴承箱及各种精密机械部件等产品，目前公司拥有现货库存、快捷的物流体系、能在较短的时间内为用户解决轴承的配套供应和提供个性化服务。
欢迎垂询Rexroth-STAR精密轴承 R0667-030-00轴承价格和库存信息。咨询热线：021-52797858转8008询价 |
