ZB2315轴承尺寸规格 |
| Additional Notes Product Features Bearing Dimensions Corrosion resistant powder coating Cast iron housing Misalignment capabilities - Total of 3° Broad range of sealing options Factory set clearance & lubrication Precision ground & superfinished raceways Hardened spring locking collar Field interchangeable seals See Features & Benefits for additional info. Please call 1-866-REXNORD for availability Metric bore sizes available, see Rexnord Interchangeability guide Lubrication fitting tap size, 1/8” PT Bore size = nominal shaft size +.001”/-.000” Machined pilot available, add suffix S Seals - To specify K or M seal, replace “Z” in part number with “K” or “M” Auxiliary end caps - available in all size codes except for size codes 2 thru 6 Also not available on size code 7 on flange side of non-piloted bearings and size code 7 thru 9 on flange side of piloted bearings Pilot Diameter tolerance, +.000”/-.003” Selection Guide, see Rexnord Spherical Roller Bearings Selection Guide section Load Ratings & Speed Limits, see Rexnord Spherical Roller Bearings Load Ratings & Speed Limits section Note: Dimensions subject to change. Certified dimensions of ordered material furnished on request. Photo Shows a 4-Bolt Spherical Roller Bearing Flanged Unit B Distance Between Bolt Holes Four Bolt Round Flange Block Four Bolt Square Flange Block Side View Flange With Pilot Full Side View Flange Block B Distance Between Bolt Holes P P H H R Bolt Circle Radius R Bolt Circle Radius 1/8 Size Code Shaft Diameter Expansion Fixed B Distance Between Bolt Holes R Bolt Circle Radius C D F Bolts G H M N P S Approx. Part Weight Number A Part Number A 3-Bolt Round 2 3/4 - - ZB2012 2 7/8 3 37/64 2 1/16 5 1/8 2 9/16 3/8 1/32 9/16 1 3/4 1 5/16 9/16 3 4.30 15/16 - - ZB2015 4.20 1 - - ZB2100 3 1 1/8 - - ZB2102 3 1/8 3 57/64 2 1/4 5 1/2 2 11/16 3/8 1/32 19/32 2 1 17/32 9/16 3 1/4 5.20 1 3/16 - - ZB2103 5.10 1 1/4 - - ZB2104 5.00 4 1 7/16 ZBS2107 3 3/4 ZB2107 3 7/16 4 21/64 2 1/2 6 1/4 2 7/8 1/2 1/32 5/8 2 5/16 1 3/4 11/16 3 9/16 6.80 1 1/2 ZBS2108 ZB2108 6.70 4-Bolt Round 5 1 11/16 ZBS2111 4 1/4 ZB2111 3 15/16 3 57/64 2 3/4 6 3/4 3 1/8 1/2 1/32 5/8 2 5/8 2 1/32 11/16 4 1/16 8.60 1 3/4 ZBS2112 ZB2112 8.40 6 1 15/16 ZBS2115 4 1/2 ZB2115 4 1/4 4 1/16 2 7/8 7 3 1/8 1/2 1/16 11/16 2 15/16 2 5/16 11/16 4 3/8 9.80 2 ZBS2200 ZB2200 9.60 7 2 3/16 ZBS2203 4 7/8 ZB2203 4 7/8 4 1/2 3 3/16 7 3/4 3 5/16 5/8 3/32 11/16 3 1/4 2 5/8 13/16 5 13.30 2 1/4 ZBS2204 ZB2204 13.10 8 2 3/8 ZBS2206 5 3/8 ZB2206 5 3/8 4 49/64 3 3/8 8 1/8 3 1/2 5/8 3/32 3/4 3 9/16 2 29/32 7/8 5 7/16 16.70 2 7/16 ZBS2207 ZB2207 16.60 2 1/2 ZBS2208 ZB2208 16.40 9 2 11/16 ZBS2211 6 1/4 ZB2211 6 1/4 5 9/16 3 15/16 9 1/2 4 3/4 3/32 7/8 4 1/16 3 3/8 7/8 6 5/16 26.50 2 3/4 ZBS2212 ZB2212 26.10 2 15/16 ZBS2215 ZB2215 25.60 3 ZBS2300 ZB2300 25.10 4-Bolt Square 10 3 3/16 ZBS2303 7 3/8 ZB2303 7 3/8 6 23/32 4 3/4 8 7/16 4 3/8 3/4 1/4 1 4 15/16 3 31/32 15/16 7 3/8 37.00 3 7/16 ZBS2307 ZB2307 34.60 3 1/2 ZBS2308 ZB2308 34.10 11 3 11/16 ZBS2311 8 3/8 ZB2311 8 1/2 7 19/32 5 3/8 9 3/4 5 3/16 7/8 1/4 1 1/8 5 5/8 4 9/16 1 1/16 8 1/2 59.00 3 15/16 ZBS2315 ZB2315 56.00 4 ZBS2400 ZB2400 |
近期推荐轴承型号ZB2315,
,
PB22671FH,
M5320UV,
MA7322TV,
MR1032TAV,
MR7315TV,
YG228NL,
FXUG216N,
EPEB224M75FH轴径75(in),
EFRB224M35H轴径35(in),
KLPSS2M35轴径35(in),
以上为我司部分轴承型号，如需查找其他型号，可登陆我们的现货中心栏目或致电021-52797858转8008询价,进行详细查询，谢谢！
|

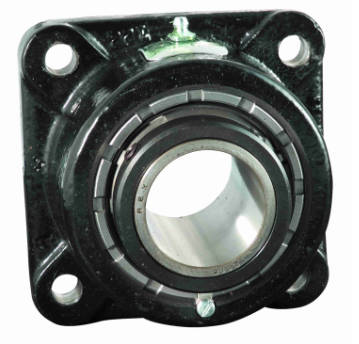

| ZB2315产品详细图片： |
 |
| LINK-BELT轴承品牌介绍： |
| Linkbelt隶属美国REXNORD，美国莱克斯诺工业集团是大型跨国工业集团公司，坐落于美国威斯康辛州的密尔沃基市，是复杂工艺机械传动部件制造商。其主要产品包括：LINK-BELT滚动轴承、LINK-BELT高精度轴承、LINK-BELT调心轴承、LINK-BELT带座轴承、LINK-BELT平面球轴承、LINK-BELT轴承直线导轨、LINK-BELT轴承滚珠丝杆、LINK-BELT轴承微小型直线导轨、LINK-BELT轴承交叉滚子导轨、LINK-BELT往轴承复旋转衬套轴承、LINK-BELT轴承滚珠滑组、LINK-BELT凸轮从动轴承等。 |
上海川代轴承机械有限公司专业销售LINK-BELT轴承 ZB2315轴承,LINK-BELT轴承品牌供应商,我们为您提供ZB2315的具体的规格参数及报价，本公司同时销售包括LINK-BELT轴承品牌在内的多种进口轴承，包括深沟球轴承、自动调心球轴承、角接触球轴承、圆柱滚子轴承、滚针轴承、球面滚子轴承、推力轴承、Y-轴承、滚轮轴承，直线轴承，滑动轴承，轴承箱及各种精密机械部件等产品，目前公司拥有现货库存、快捷的物流体系、能在较短的时间内为用户解决轴承的配套供应和提供个性化服务。
欢迎垂询LINK-BELT轴承 ZB2315轴承价格和库存信息。咨询热线：021-52797858转8008询价 |
